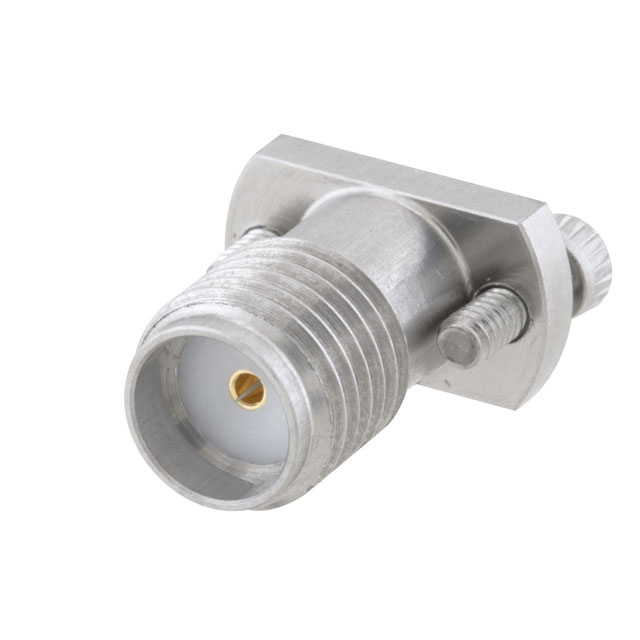

PE45459
ActivePasternack
SMA(F) PCB VERT LAUNCH MSTRP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PE45459
ActivePasternack
SMA(F) PCB VERT LAUNCH MSTRP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PE45459 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Clamp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Features | Mounting Hardware |
| Frequency - Max [Max] | 26.5 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Operating Temperature [Max] | 135 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 53.99 | |
| 25 | $ 51.29 | |||
| 50 | $ 48.59 | |||
| 100 | $ 46.43 | |||
Description
General part information
PE45459
SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Clamp
