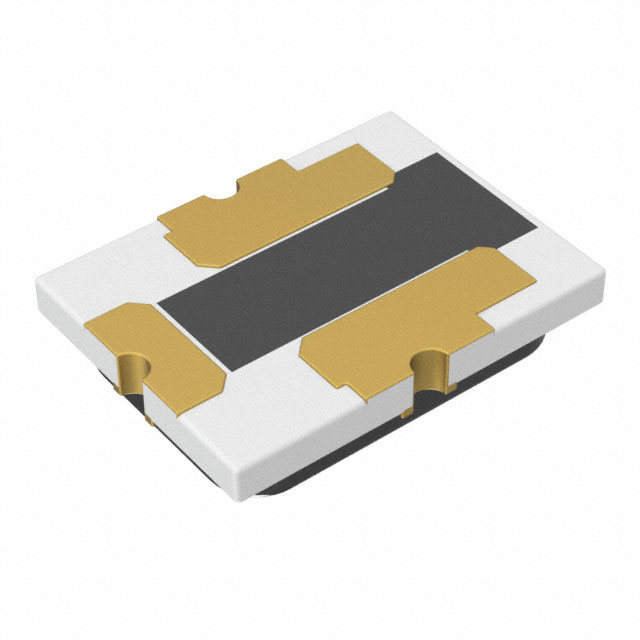

FD-4030-12A-C2-C

Obsolete

Delta Electronics/Cyntec

SMD FUSE RATED CURRENT 12A/35VDC

Search across all available documentation for this part.

Obsolete

Delta Electronics/Cyntec

SMD FUSE RATED CURRENT 12A/35VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FD-4030-12A-C2-C	FD-4030 Series

Applications	Battery Protection	Battery Protection
Approval Agency	TUV, UL	TUV, UL
Breaking Capacity @ Rated Voltage	50 A	50 A
Current Rating (Amps)	12 A	12 A
Features	Triggerable	Triggerable
Features	-	True
Features [Max]	9 V	4.5 - 19.6 V
Features [Min]	4 V	3 - 10.5 V
Fuse Type	Board Mount	Board Mount
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-10 °C	-10 °C
Package / Case	1612, 4030 Metric	1612, 4030 Metric
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	0.157 "	0.157 "
Size / Dimension [x]	4 mm	4 mm
Size / Dimension [y]	0.118 in	0.118 in
Size / Dimension [y]	3 mm	3 mm
Size / Dimension [z]	0.95 mm	0.95 mm
Size / Dimension [z]	0.037 "	0.037 "
Voltage Rating - DC	35 V	35 V

SMD FUSE RATED CURRENT 12A/35VDC

Part	Approval Agency	Mounting Type	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Response Time	Fuse Type	Breaking Capacity @ Rated Voltage	Features [Min]	Features [Max]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage Rating - DC	Current Rating (Amps)
Delta Electronics/Cyntec FD-4030-12A-C4-C	TUV, UL	Surface Mount	1612, 4030 Metric	0.95 mm	0.118 in	0.157 "	0.037 "	3 mm	4 mm	Fast Blow	Board Mount	50 A	10.5 V	19.6 V	Triggerable	-10 °C	65 °C	Battery Protection	35 V	12 A
Delta Electronics/Cyntec FD-4030-12A-C2-C	TUV, UL	Surface Mount	1612, 4030 Metric	0.95 mm	0.118 in	0.157 "	0.037 "	3 mm	4 mm	Fast Blow	Board Mount	50 A	4 V	9 V	Triggerable	-10 °C	65 °C	Battery Protection	35 V	12 A
Delta Electronics/Cyntec FD-4030-12A-C1-C	TUV, UL	Surface Mount	1612, 4030 Metric	0.95 mm	0.118 in	0.157 "	0.037 "	3 mm	4 mm	Fast Blow	Board Mount	50 A	3 V	4.5 V		-10 °C	65 °C	Battery Protection	35 V	12 A
Delta Electronics/Cyntec FD-4030-12A-C3-C	TUV, UL	Surface Mount	1612, 4030 Metric	0.95 mm	0.118 in	0.157 "	0.037 "	3 mm	4 mm	Fast Blow	Board Mount	50 A	7.4 V	14 V	Triggerable	-10 °C	65 °C	Battery Protection	35 V	12 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

12A 35 VDC Fuse Board Mount Surface Mount
