9806 060500

Unknown

Belden Inc.

MULTI-PAIR 8CON 28AWG CHROM

Search across all available documentation for this part.

Unknown

Belden Inc.

MULTI-PAIR 8CON 28AWG CHROM

Technical Specifications

Parameters and characteristics for this part

Specification	9806 060500

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.02 mm
Jacket (Insulation) Diameter [diameter]	0.237 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	8
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2960
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	28 AWG

Part	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Jacket (Insulation) Material	Number of Conductors	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Ratings	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Conductor Material	Cable Type	Conductor Insulation
Belden Inc. 9806 060500	28 AWG	-20 C	60 °C	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	8	500 '	152.4 m	36 AWG	7	Braid Foil	UL Style 2960	90 % 100 %	6.02 mm	0.237 in	Computer	Drain Wire	0.889 mm	0.035 in	Chrome	Copper Tinned	Multi-Pair	Polypropylene (PP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 4.16

General part information

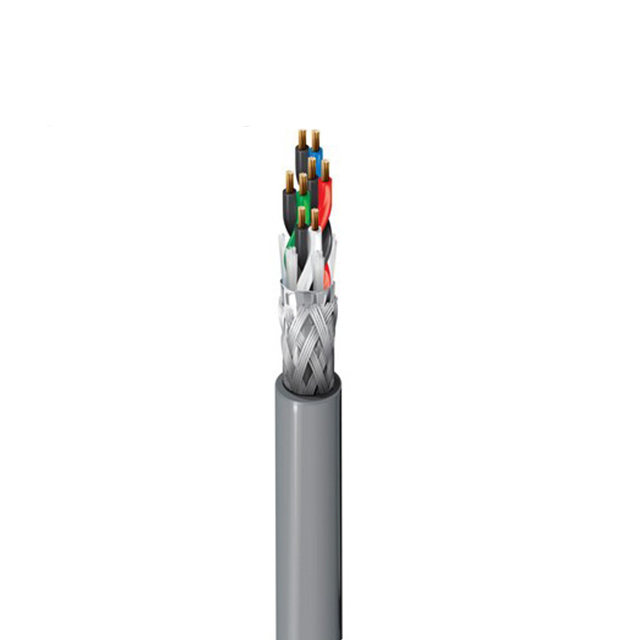

8 (4 Pair Twisted) Conductor Multi-Pair Cable Chrome 28 AWG Foil, Braid 500.0' (152.4m)
