046817650000846+
ActiveKYOCERA AVX

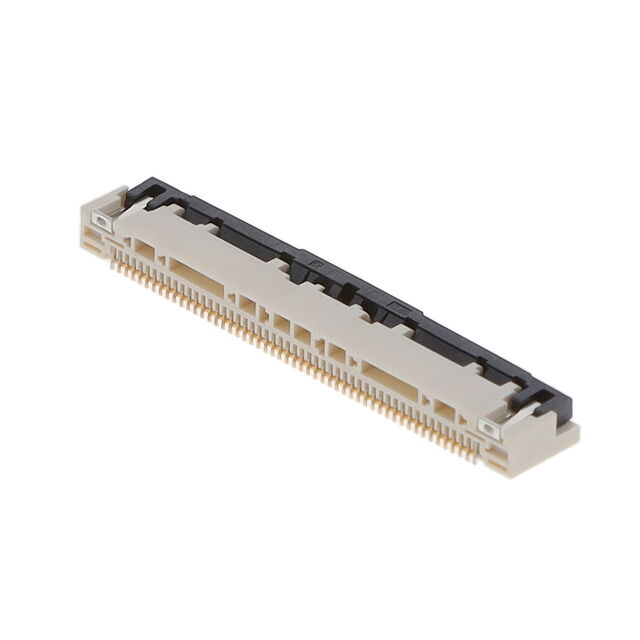

CONN FFC VERT 50POS 0.5MM SMD
046817650000846+
ActiveKYOCERA AVX
CONN FFC VERT 50POS 0.5MM SMD
Description
General part information
046817650000846+
50 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 046817650000846+ |
|---|---|
| Cable End Type | Notched, Tapered |
| Connector/Contact Type | Contacts, 1 Sided, Vertical |
| Contact Finish | Gold |
| Contact Finish Thickness | 2 µin |
| Contact Material | Copper Alloy |
| Features | Solder Retention |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FFC, FPC |
| Height Above Board | 0.209 in |
| Housing Material | Plastic |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.02 in |
| Termination | Solder |
