Description
General part information
ABX00046

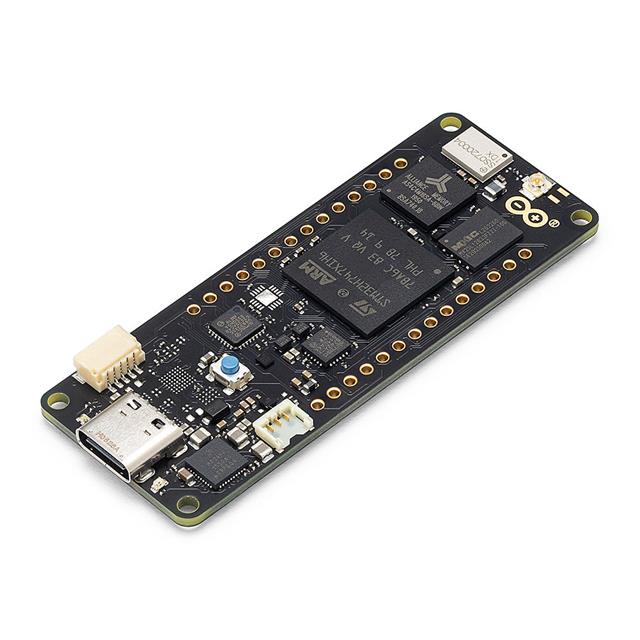

The Arduino Portenta H7 Lite (ABX00046) is a high-performance embedded evaluation board featuring the STM32H747 dual-core 32 bit ARM® Cortex®-M4 and Cortex®-M7 MCUs. It supports Arduino MKR interconnect system and offers versatile programming options including Arduino IDE, Javascript, Mbed-Enabled, MicroPython, and TensorFlow Lite. With ethernet connectivity from the LAN8742AI, wireless 802.11 b/g/n and Bluetooth 4.1 from the LBEE5KL1DX The board is designed for advanced applications requiring flexible connectivity. Ideal for prototype development, it provides a comprehensive platform for engineers to explore and implement complex embedded solutions.
Technical Specifications
Parameters and characteristics for this part
| Specification | ABX00046 |
|---|---|
| Board Type | Evaluation Platform |
| Contents | Accessories, Board, Cable |
| Core Processor | ARM® Cortex®-M4, Cortex®-M7 |
| Interconnect System | Arduino MKR |
| Mounting Type | Fixed |
| Platform | Portenta H7 |
| Suggested Programming Environment | Mbed-Enabled, Arduino, MicroPython, TensorFlow Lite, Javascript |
| Type | MCU 32-Bit |
| Utilized IC / Part | STM32H747 |
