1011403
ActiveIntegrated Power Designs

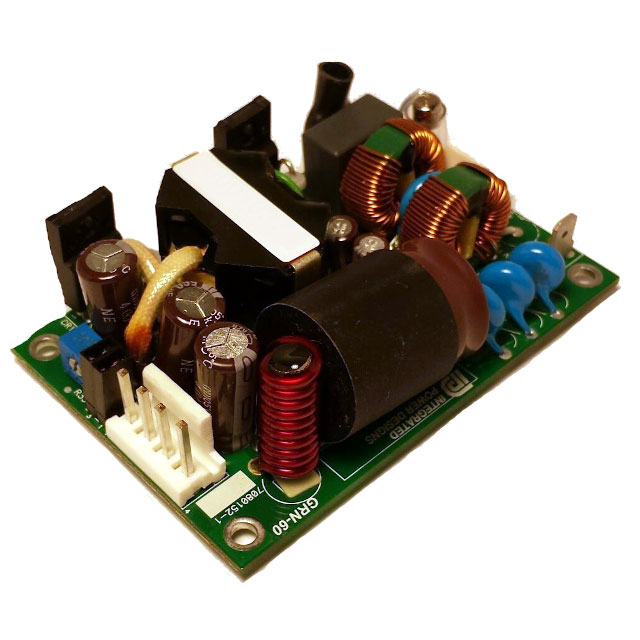

AC/DC CONVERTER 12V 60W
1011403
ActiveIntegrated Power Designs
AC/DC CONVERTER 12V 60W
Description
General part information
1011403
Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | 1011403 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | cURus, UKCA, TUV, CE |
| Current - Output 1 | 5 A |
| Efficiency | 87 % |
| Features | Universal Input, Adjustable Output, Remote Sense |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 60 W |
| Size / Dimension Height | 0.83 in |
| Size / Dimension Length | 3 in |
| Size / Dimension Width | 2 in |
| Standard Number | 60601-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output 1 | 12 V |
