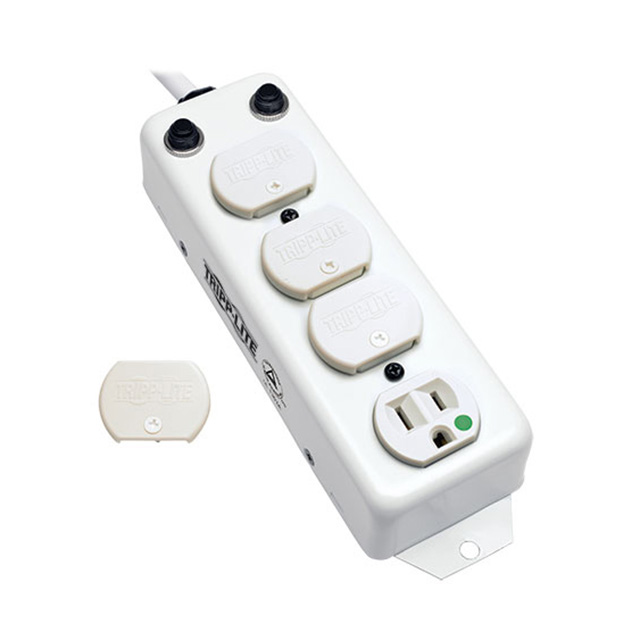

PS-407-HG-OEM
ActiveEXTENSION LEAD, MEDICAL GRADE, 4 OUTLETS, NEMA 5-15R-HG, 15 A, 120 V, NEMA 5-15P-HG, 7 FT
PS-407-HG-OEM
ActiveEXTENSION LEAD, MEDICAL GRADE, 4 OUTLETS, NEMA 5-15R-HG, 15 A, 120 V, NEMA 5-15P-HG, 7 FT
Description
General part information
PS-407-HG-OEM
Medical-grade power strip supplies power to movable plug-connected components mounted to a rack, table or pedestal in operating rooms, patient-care vicinities, therapy rooms, imaging environments and administrative areas. Compliant with UL 1363A specifications, this 120V, 50/60 Hz power strip features a NEMA 5-15P-HG hospital-grade plug and four NEMA 5-15R-HG hospital-grade outlets that include locking safety covers.
Technical Specifications
Parameters and characteristics for this part
| Specification | PS-407-HG-OEM |
|---|---|
| AC Outlets (Count) | 4 count |
| Approval Agency | UL, TUV |
| Connector - AC Input | NEMA 5-15P |
| Connector - AC Output | NEMA 5-15R |
| Cord Length | 7 ft |
| Current - Max | 15 A |
| Housing Material | Metal |
| Mounting Type | Wall, Rack, Bench |
| Overload Protection | Circuit Breaker(s) |
| Type | Outlet Strip, Power Strip |
| Voltage - Input | 120 VAC |
| Weight | 2.8 lbs |
