2-6450122-9
ActiveTE Connectivity AMP Connectors

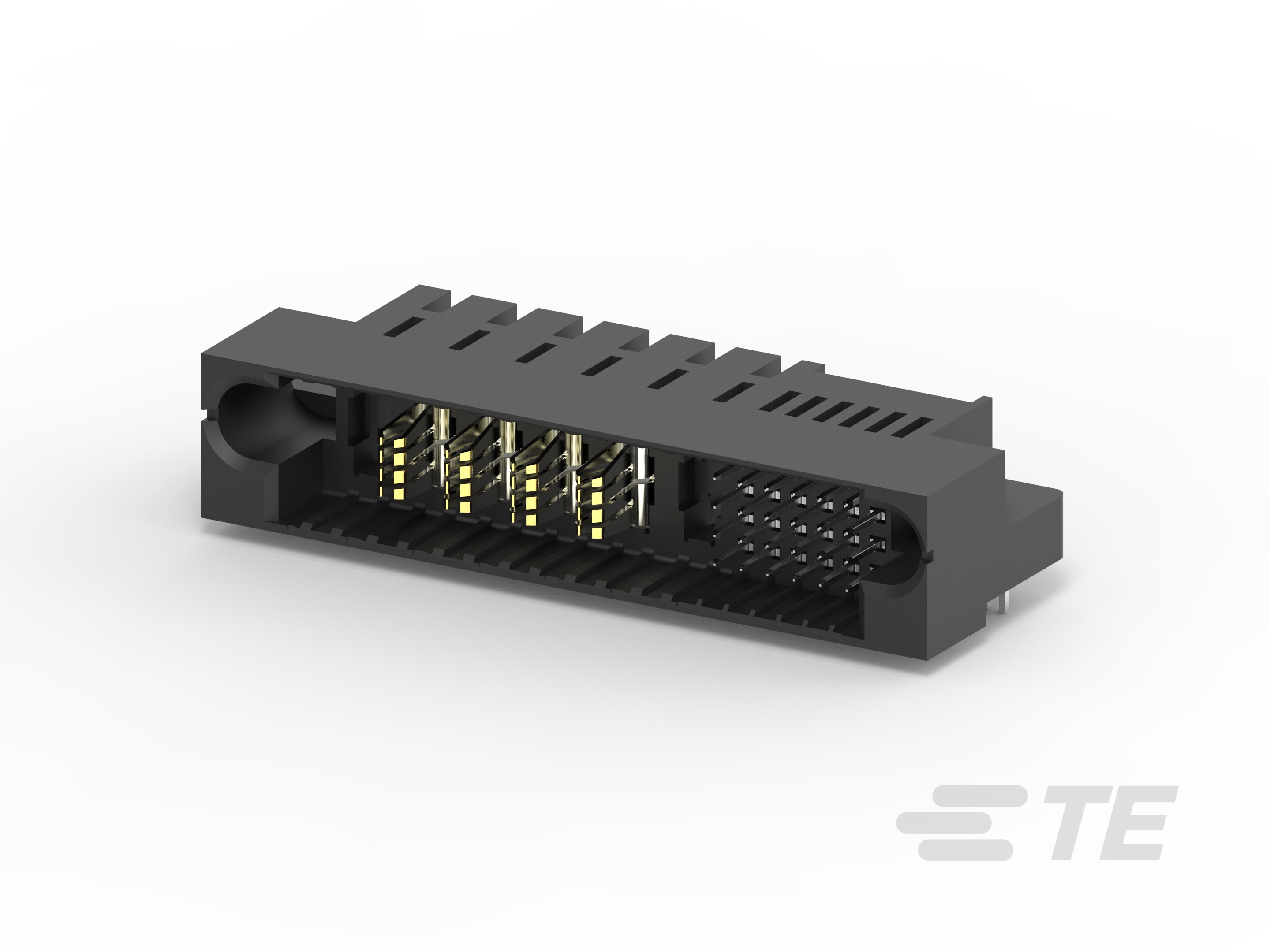

MBXL R/A HDR 6P+24S
2-6450122-9
ActiveTE Connectivity AMP Connectors
MBXL R/A HDR 6P+24S
Description
General part information
2-6450122-9
PCB Mount Header, Right Angle, Board-to-Board, 30 Position, 2.54 mm / 6.35 mm [.1 in / .25 in] Centerline, Fully Shrouded, Gold (Au)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-6450122-9 |
|---|---|
| Color | Black |
| Connector Style | Multi-Beam |
| Connector Type | Blades, Male Pins, Header |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Mating Guide |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | 4 |
| Pitch | 0.1 in |
| Power Contacts (Typical) | 6 |
| Signal Contacts (Typical) | 24 |
| Termination | Solder |
