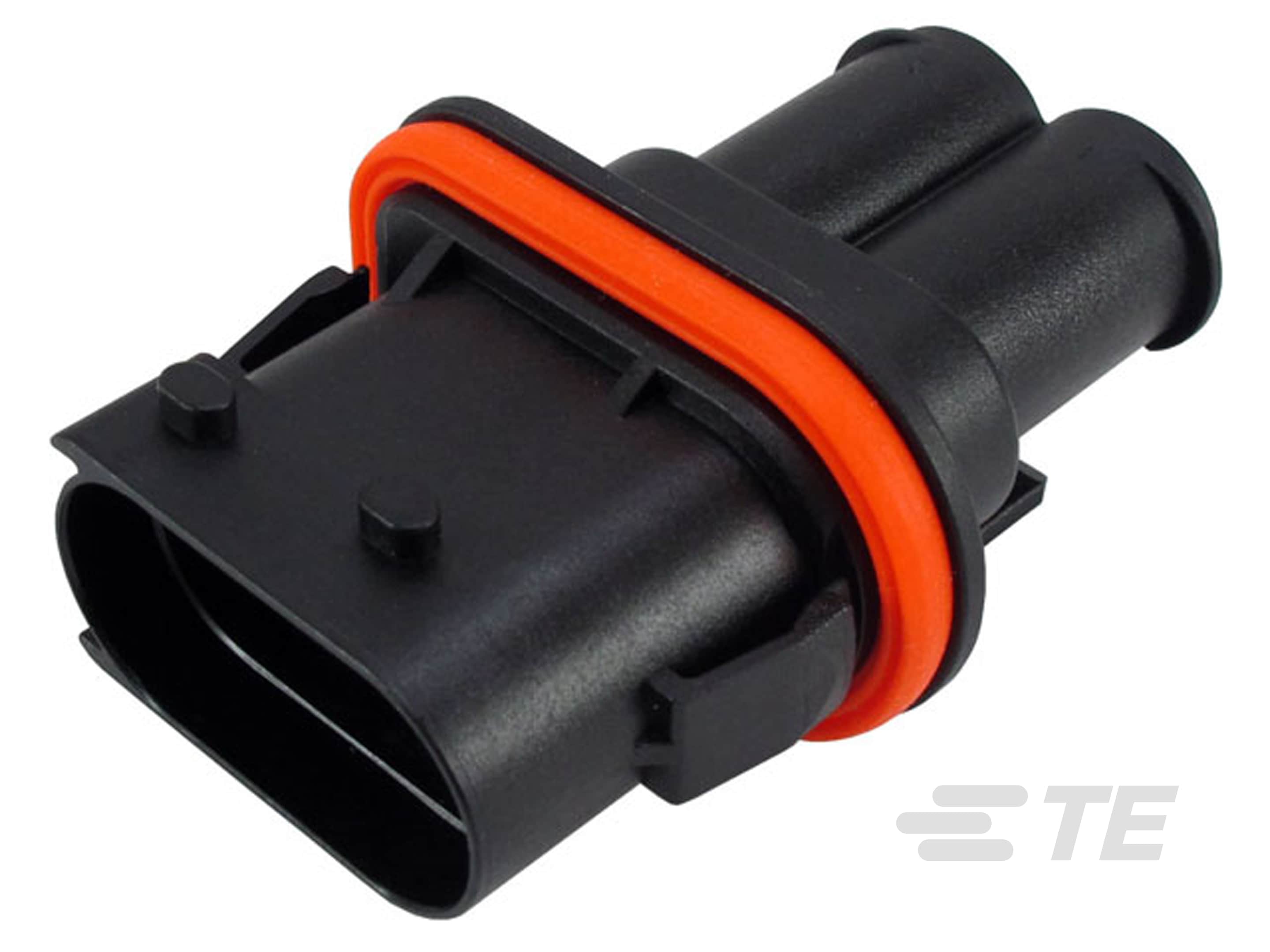

Specification	1394026-1

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Tab
Fastening Type	Latch Holder
Features	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Panel Mount, Snap-In
Number of Positions	2
Number of Rows	1
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-30 °C
Pitch	0.65 in

AMP MCP 9.5 Series

Part	Number of Positions	For Use With/Related Products	Accessory Type	Note	Insulation Material	Contact Termination	Connector Type	Mounting Type	Fastening Type	Contact Type	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Color	Type	Contact Finish	Pin or Socket	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Finish Thickness	Features
TE Connectivity AMP Connectors 1355437-3	2	MCP Series	Wire Seal
TE Connectivity AMP Connectors 1355289-2	2			Contacts Not Included	Glass Filled Nylon 6/6 Polyamide (PA66)	Crimp	Receptacle	Free Hanging (In-Line)	Latch Lock	Female Socket	1	-40 °C	85 °C	Gray
TE Connectivity AMP Connectors 1355437-2		MCP Series	Wire Seal
TE Connectivity AMP Connectors 1355289-1	2				Glass Filled Nylon 6/6 Polyamide (PA66)	Crimp	Receptacle	Free Hanging (In-Line)	Latch Lock	Female Socket	1	-40 °C	85 °C	Black
TE Connectivity AMP Connectors 1-967589-2						Crimp									Stamped	Silver	Socket	5 AWG	7 AWG
TE Connectivity AMP Connectors 1-967590-2						Crimp									Stamped	Silver	Socket	7 AWG	9 AWG	118.1 µin
TE Connectivity AMP Connectors 1743793-1	1				Glass Filled Nylon Polyamide (PA)	Crimp	Housing for Female Insert	Free Hanging (In-Line)	Latch Lock	Female Socket	1	-40 °C	130 °C	Black							Sealed
TE Connectivity AMP Connectors 1355437-1		MCP Series	Wire Seal
TE Connectivity AMP Connectors 1355328-1	2			Contacts Not Included	Glass Filled Nylon Polyamide (PA)	Crimp	Receptacle	Free Hanging (In-Line)	Latch Holder	Female Socket	1	-40 °C	130 °C	Black
TE Connectivity AMP Connectors 1-967589-1						Crimp										Tin	Socket	10 AWG	16 AWG
