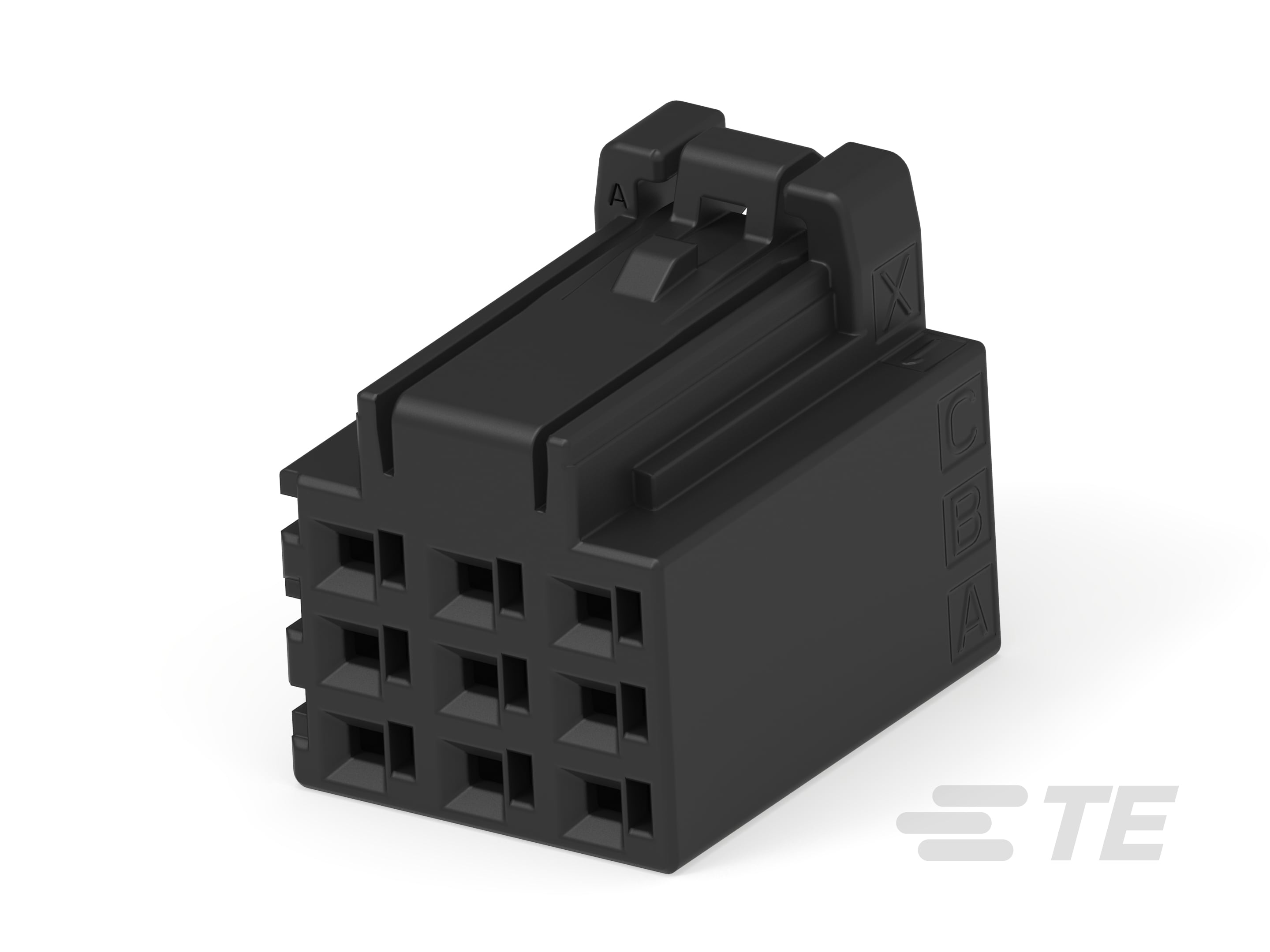

CONNECTOR HOUSING, BLACK, DYNAMIC D1000 SLIM SERIES, RECEPTACLE, 9 POSITIONS, 2.7 MM
1-2375948-9
ActiveTE Connectivity AMP Connectors
CONNECTOR HOUSING, BLACK, DYNAMIC D1000 SLIM SERIES, RECEPTACLE, 9 POSITIONS, 2.7 MM
Description
General part information
1-2375948-9
Housing, Receptacle, Wire-to-Wire, 9 Position, 2.7 mm [.106 in] Centerline, Crimp, 3 Row, Black, Wire & Cable, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2375948-9 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyester, Thermoplastic, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 9 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.106 in |
| Row Spacing | 0.106 in |
