185F-185F+
ActiveMini-Circuits
ADPTR 1.85MM-F/1.85MM-F ROHS
185F-185F+
ActiveMini-Circuits
ADPTR 1.85MM-F/1.85MM-F ROHS
Description
General part information
185F-185F+

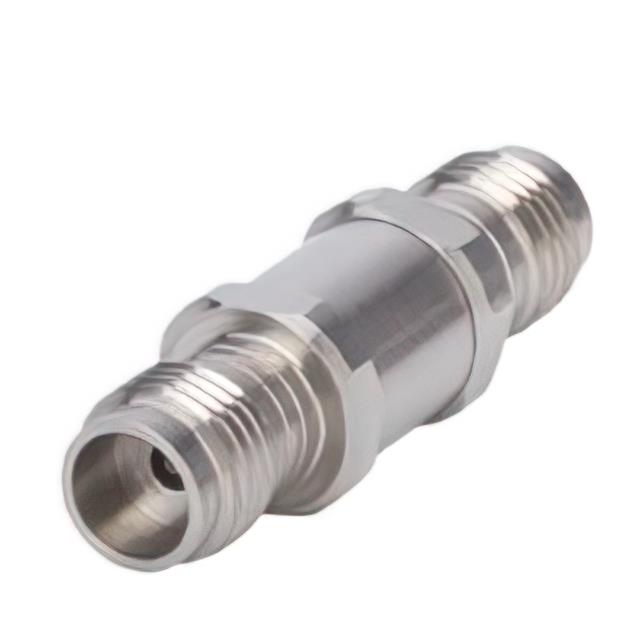

Adapter Coaxial Connector 1.85mm Jack, Female Socket To 1.85mm Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | 185F-185F+ |
|---|---|
| Adapter Series Size | 1.85 mm |
| Adapter Type | Jack to Jack |
| Center Gender | Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) Jack Size | 1.85 mm |
| Convert From (Adapter End) Type | Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | 1.85mm Jack |
| Fastening Type | Threaded |
| Frequency - Max | 67 GHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.3 dB |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -55 °C |
| Style | Straight |
