P005-002-14LA
ObsoleteEaton Tripp Lite
CORD 14AWG IEC 320-C14 - C13 2'
P005-002-14LA
ObsoleteEaton Tripp Lite
CORD 14AWG IEC 320-C14 - C13 2'
Description
General part information
P005-002-14LA

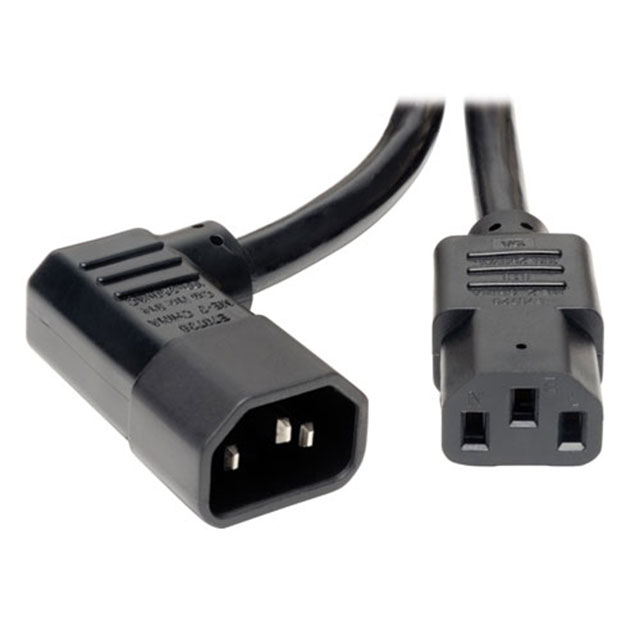

2.00' (609.6mm) Power Cord Black IEC 320-C14, Left Angle To IEC 320-C13 SJT
Technical Specifications
Parameters and characteristics for this part
| Specification | P005-002-14LA |
|---|---|
| 1st Connector | Left Angle, IEC 320-C14 |
| 1st Connector - Orientation | Left Angle |
| 1st Connector - Type | IEC 320-C14 |
| 1st Connector Model | IEC 320-C14 |
| 1st Connector Style | Left Angle |
| 2nd Connector | IEC 320-C13 |
| Approval Agency Marking | UL |
| Approved Countries | United States |
| Color | Black |
| Cord Type | SJT |
| Current Rating | 15 A |
| Length | 24 in |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating (AC) Maximum | 250 VAC |
| Voltage Rating (AC) Minimum | 100 VAC |
| Wire Gauge | 14 AWG |
