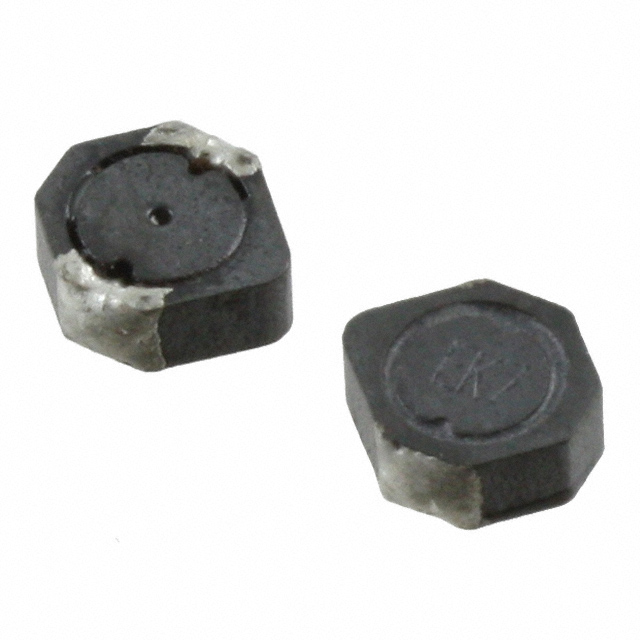

SD3114-4R7-R
ActiveEaton - Electronics Division
FIXED IND 4.7UH 770MA 251MOHM SM
SD3114-4R7-R
ActiveEaton - Electronics Division
FIXED IND 4.7UH 770MA 251MOHM SM
Description
General part information
SD3114-4R7-R
FIXED IND 4.7UH 770MA 251MOHM SM
Technical Specifications
Parameters and characteristics for this part
| Specification | SD3114-4R7-R |
|---|---|
| Current - Saturation (Isat) | 1.14 A |
| Current Rating | 770 mA |
| DC Resistance (DCR) | 251 mOhm |
| Height - Seated (Max) | 0.055 in |
| Inductance | 4.7 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.122 in |
| Size / Dimension Width | 0.122 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
