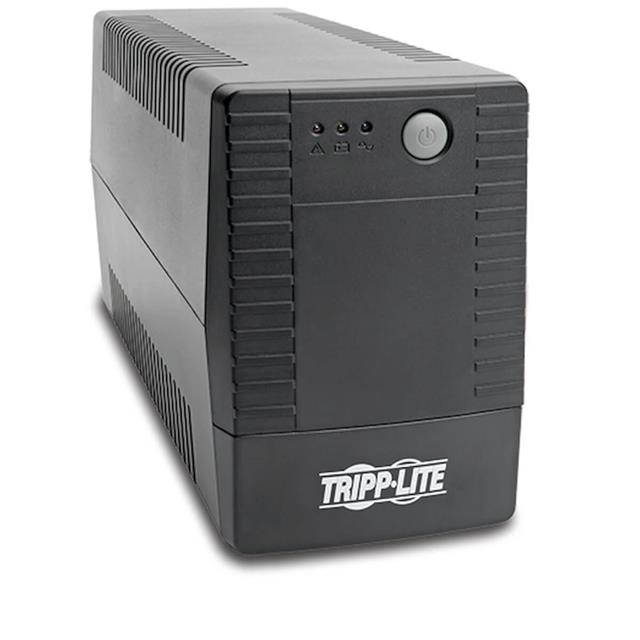

OMNIVSX650
ObsoleteEaton Tripp Lite
LINE INTERACTIVE UPS, C13 OUTLET
OMNIVSX650
ObsoleteEaton Tripp Lite
LINE INTERACTIVE UPS, C13 OUTLET
Description
General part information
OMNIVSX650
LINE INTERACTIVE UPS, C13 OUTLET
Technical Specifications
Parameters and characteristics for this part
| Specification | OMNIVSX650 |
|---|---|
| AC Outlets (Count) | 4 count |
| Applications | General Purpose, Industrial Control |
| Form | Tower |
| Height | 5.6 in |
| Input Connector | IEC 320-C14 |
| Output Connector | C13 |
| Output Connector Pin Count | 4 |
| Power - Rated | 360 W |
| Size / Dimension Length | 11.8 in |
| Size / Dimension Width | 4 in |
| Type | Line Interactive (Input Regulation) |
| Voltage - Input | 230 V |
| Voltage - Output | 230 V |
