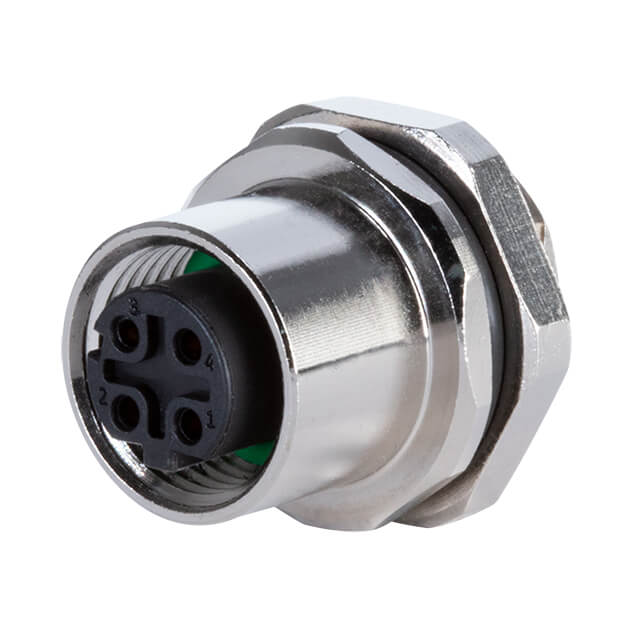

CDM1216-04D-FT-R16-67
ActiveSame Sky (Formerly CUI Devices)
M12 FEMALE PANEL MOUNT,SOLDER TY
CDM1216-04D-FT-R16-67
ActiveSame Sky (Formerly CUI Devices)
M12 FEMALE PANEL MOUNT,SOLDER TY
Description
General part information
CDM1216-04D-FT-R16-67
4 Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | CDM1216-04D-FT-R16-67 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Positions | 4 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | D |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating | 250 V |
