177900-4
ActiveTE Connectivity AMP Connectors
POWER DBL LOCK PLUG HSG 4P
177900-4
ActiveTE Connectivity AMP Connectors
POWER DBL LOCK PLUG HSG 4P
Description
General part information
177900-4

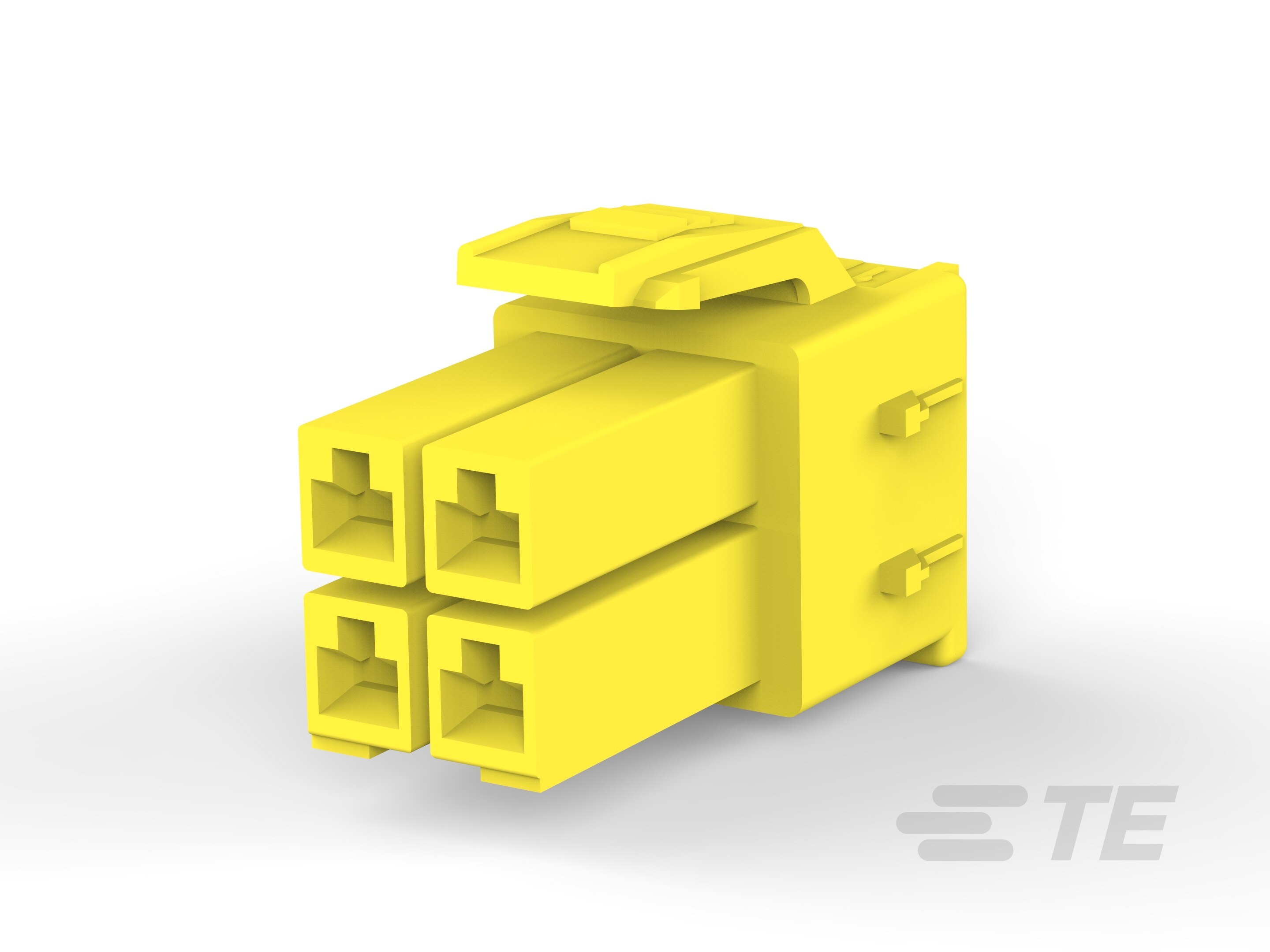

4 Position, Plug, Housing, Crimp, Wire-to-Wire, UL 94V-0, 3.96 mm [.156 in] Centerline, 2 Row, 300 VAC, Wire & Cable, Power Double Lock
Technical Specifications
Parameters and characteristics for this part
| Specification | 177900-4 |
|---|---|
| Color | Yellow |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.156 in |
| Row Spacing | 0.181 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
ENG_CD_177900_F4.pdf
Datasheet
AMP POWER DOUBLELOCK CONNECTOR SERIES
Product Specification - Power Double Lock Connector System
Crimping AMP Power Double Lock Contact
AMP POWER DOUBLE LOCK CONNECTOR REPORT
AMP Power DBL Lock Connector W-W Type
SOFT_SHELL_PIN_AND_SOCKET_CONNECTORS_CATALOG
177900-4 | Datasheet
