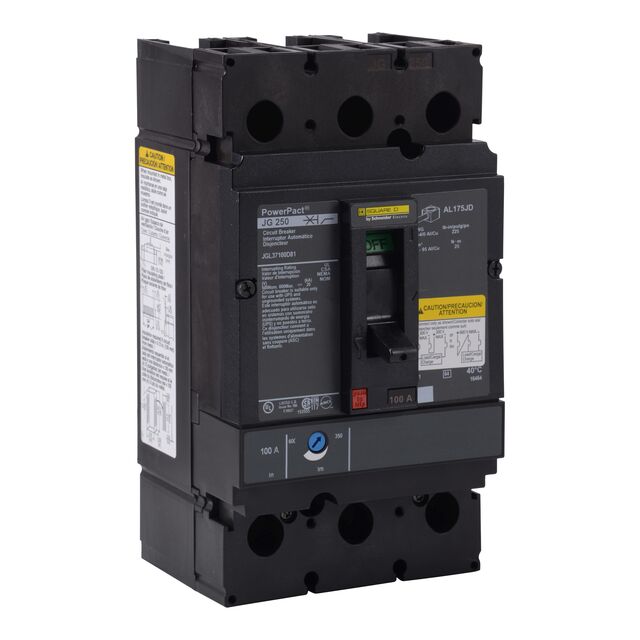

JGL37200D82
ActiveSCHNEIDER ELECTRIC
MOLDED CASE CIRCUIT BREAKER 500V
JGL37200D82
ActiveSCHNEIDER ELECTRIC
MOLDED CASE CIRCUIT BREAKER 500V
Description
General part information
JGL37200D82
Circuit Breaker Thermal Magnetic 200A AC DC Toggle Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | JGL37200D82 |
|---|---|
| Actuator Type | Toggle |
| Approval Agency | UL, CSA |
| Breaker Type | Thermal Magnetic |
| Current Rating | 200 A |
| Illumination | None |
| Mounting Type | Chassis Mount |
| Number of Poles | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
