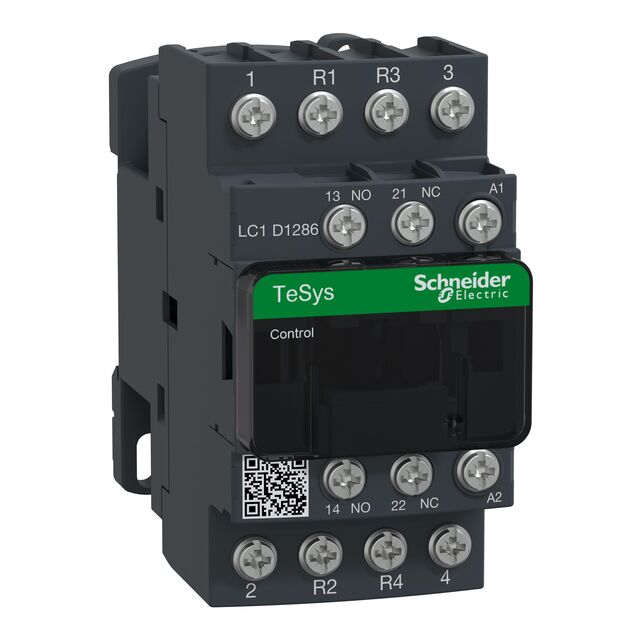

LC1D1286G7
ActiveSCHNEIDER ELECTRIC
CONTACTOR 600VAC 12AMP IEC OPTIONS ROHS COMPLIANT: YES
LC1D1286G7
ActiveSCHNEIDER ELECTRIC
CONTACTOR 600VAC 12AMP IEC OPTIONS ROHS COMPLIANT: YES
Description
General part information
LC1D1286G7
CONTACTOR 600VAC 12AMP IEC OPTIONS ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D1286G7 |
|---|---|
| Coil Voltage | 120 V |
| Contact Form | 4 Form A, PST-NO |
| Contact Rating (Current) | 25 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 102 VAC |
| Must Release Voltage | 36 VDC |
| Operate Time | 22 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 4 |
| Release Time | 19 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Box Lug |
