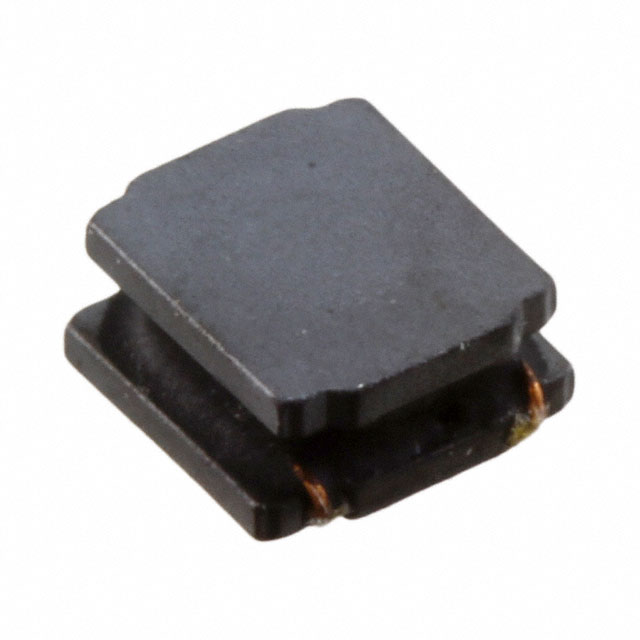

TYS3015150M-10
ActiveLaird Technologies EMI
FIXED IND 15UH 650MA 380MOHM SMD
TYS3015150M-10
ActiveLaird Technologies EMI
FIXED IND 15UH 650MA 380MOHM SMD
Description
General part information
TYS3015150M-10
15 µH Shielded Inductor 650 mA 380mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | TYS3015150M-10 |
|---|---|
| Current - Saturation (Isat) | 660 mA |
| Current Rating | 650 mA |
| DC Resistance (DCR) (Max) | 380 mOhm |
| Frequency - Self Resonant | 30 MHz |
| Height - Seated (Max) | 0.067 in |
| Inductance | 15 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.118 in |
| Size / Dimension Width | 0.118 in |
| Tolerance | 20 % |
