Description
General part information

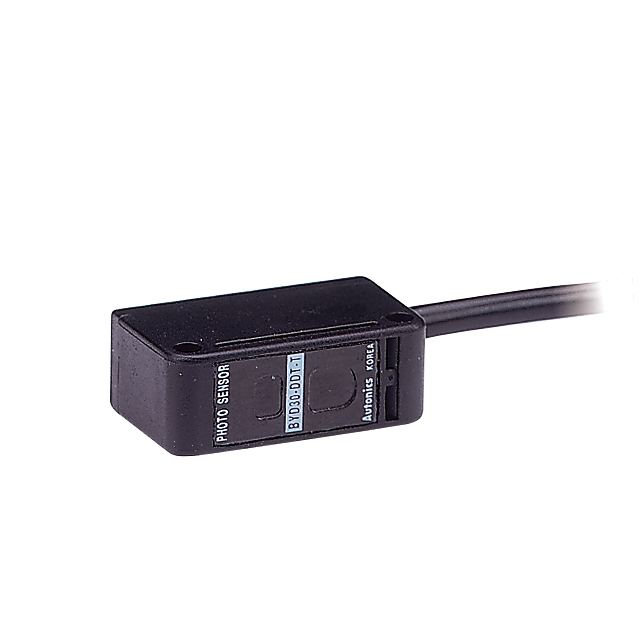

BYD30-DDT-T
Reflective, Convergent Optical Sensor 0.394" ~ 1.181" (10mm ~ 30mm) NPN - Open Collector/Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | BYD30-DDT-T |
|---|---|
| Adjustment Type | Fixed |
| Cable Length | 118.1 in, 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IEC IP50, IEC, IP50, IP64 |
| Light Source | Infrared LED |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -20 °C |
| Output Configuration | NPN - Open Collector, Light-ON |
| Response Time | 3 ms, 100 ms |
| Sensing Distance Maximum | 1.181 " |
| Sensing Distance Minimum | 0.394 " |
| Sensing Method | Reflective, Convergent |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
