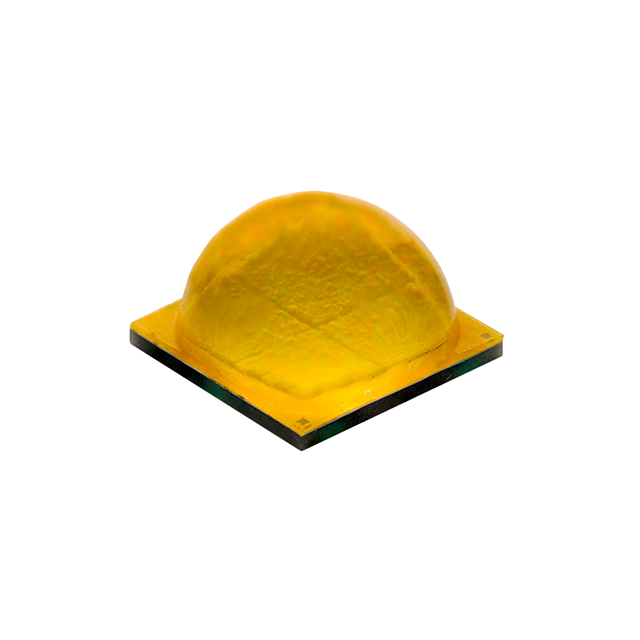

Specification	XHP70B-00-0000-0D0UM445G

CCT (K)	4500 K
CCT Description	3-Step MacAdam Ellipse
Color	White, Neutral
CRI (Color Rendering Index)	90
Current - Max	2.4 A
Current - Test	1.05 A
Flux (Maximum)	1590 lm
Flux (Minimum)	1485 lm
Flux (Typical)	1538 lm
Height - Seated (Max)	0.176 in
Lumens/Watt	131 lm/W
Mounting Type	Surface Mount
Package / Case	2828 (7070 Metric)
Package Name	2828
Size / Dimension Length	0.276 in
Size / Dimension Width	0.276 in
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	11.2 V

XHP70B Series

...

Part	Size / Dimension Width	Size / Dimension Length	Package Name	Current - Test	Flux (Minimum)	Flux (Maximum)	Flux (Typical)	Color	CCT (K)	CCT Description	Viewing Angle	Thermal Resistance of Package	Lumens/Watt	Current - Max	Height - Seated (Max)	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Mounting Type	Package / Case	Current - Max	Current - Test (Other)	Voltage - Forward (Vf) (Typ) Options	CRI (Color Rendering Index) (Typ)
CreeLED, Inc. XHP70B-00-0000-0D0HP250G	0.276 in	0.276 in	2828	1.05 A	1830 lm	1965 lm	1898 lm	Cool White	5000 K	3-Step MacAdam Ellipse	125 °	0.3 °C/W	161 lm/W	2.4 A	0.176 in	80	11.2 V	Surface Mount	2828 (7070 Metric)
CreeLED, Inc. XHP70B-00-0000-0D0UM440H	0.276 in	0.276 in	2828	1.05 A	1485 lm	1590 lm	1538 lm	Neutral White	4000 K	2-Step MacAdam Ellipse	125 °	0.3 °C/W	131 lm/W	2.4 A	0.176 in	90	11.2 V	Surface Mount	2828 (7070 Metric)
CreeLED, Inc. XHP70B-00-0000-0D0BP235E	0.276 in	0.276 in	2828	1.05 A	1830 lm	1965 lm	1898 lm	Warm White	3500 K	5-Step MacAdam Ellipse	125 °		161 lm/W	2.4 A	0.176 in	70	11.2 V	Surface Mount	2828 (7070 Metric)
CreeLED, Inc. XHP70B-00-0000-0D0HM227H	0.276 in	0.276 in	2-SMD	2.1 A	1380 lm	1485 lm	1433 lm	Warm White	2700 K	2-Step MacAdam Ellipse	125 °	0.9 °C/W	122 lm/W	4.8 A	0.171 in	80		Surface Mount	2828 (7070 Metric)	2.4A 4.8A	1.05A 2.1A	12V 6V
CreeLED, Inc. XHP70B-00-0000-0D00P20DV	0.276 in	0.276 in	2-SMD	2.1 A	1830 lm	1965 lm	1898 lm	Cool White	6000 K		125 °	0.9 °C/W	161 lm/W	4.8 A	0.171 in			Surface Mount	2828 (7070 Metric)	2.4A 4.8A	1.05A 2.1A	12V 6V	68
CreeLED, Inc. XHP70B-00-0000-0D0BP20E2	0.276 in	0.276 in	2-SMD	2.1 A	1830 lm	1965 lm	1898 lm	Cool White	5700 K		125 °	0.9 °C/W	161 lm/W	4.8 A	0.171 in	70		Surface Mount	2828 (7070 Metric)	2.4A 4.8A	1.05A 2.1A	12V 6V
CreeLED, Inc. XHP70B-00-0000-0D00N40E5	0.276 in	0.276 in	2-SMD	2.1 A	1710 lm	1830 lm	1770 lm	Neutral White	4000 K		125 °		151 lm/W	4.8 A	0.171 in			Surface Mount	2828 (7070 Metric)	2.4A 4.8A	1.05A 2.1A	12V 6V	68
CreeLED, Inc. XHP70B-00-0000-0D0HN235G	0.276 in	0.276 in	2-SMD	2.1 A	1590 lm	1710 lm	1650 lm	Warm White	3500 K	3-Step MacAdam Ellipse	125 °		140 lm/W	4.8 A	0.171 in	80		Surface Mount	2828 (7070 Metric)	2.4A 4.8A	1.05A 2.1A	12V 6V
CreeLED, Inc. XHP70B-00-0000-0D0BP20E6	0.276 in	0.276 in	2828	1.05 A	1830 lm	1965 lm	1898 lm	Warm White	3500 K		125 °		161 lm/W	2.4 A	0.176 in	70	11.2 V	Surface Mount	2828 (7070 Metric)
CreeLED, Inc. XHP70B-00-0000-0D0HN20E4	0.276 in	0.276 in	2-SMD	2.1 A	1590 lm	1710 lm	1650 lm	Neutral White	4500 K		125 °	0.9 °C/W	140 lm/W	4.8 A	0.171 in	80		Surface Mount	2828 (7070 Metric)	2.4A 4.8A	1.05A 2.1A	12V 6V
