Specification	1SNG602057R0000

Ingress Protection Description	Waterproof, Water Resistant, Dust Tight
Ingress Protection IP Rating	IP68, IP66
Material	Polyamide (PA6), Nickel Plated, Nylon 6, Brass
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-20 °C
Outside Cable Diameter (Max)	1.732 in
Outside Cable Diameter (Min)	1.339 in
Panel Hole Size	2.756 in
Thread Diameter	50 mm
Thread Length	2.079 in
Thread Pitch	1.5 mm

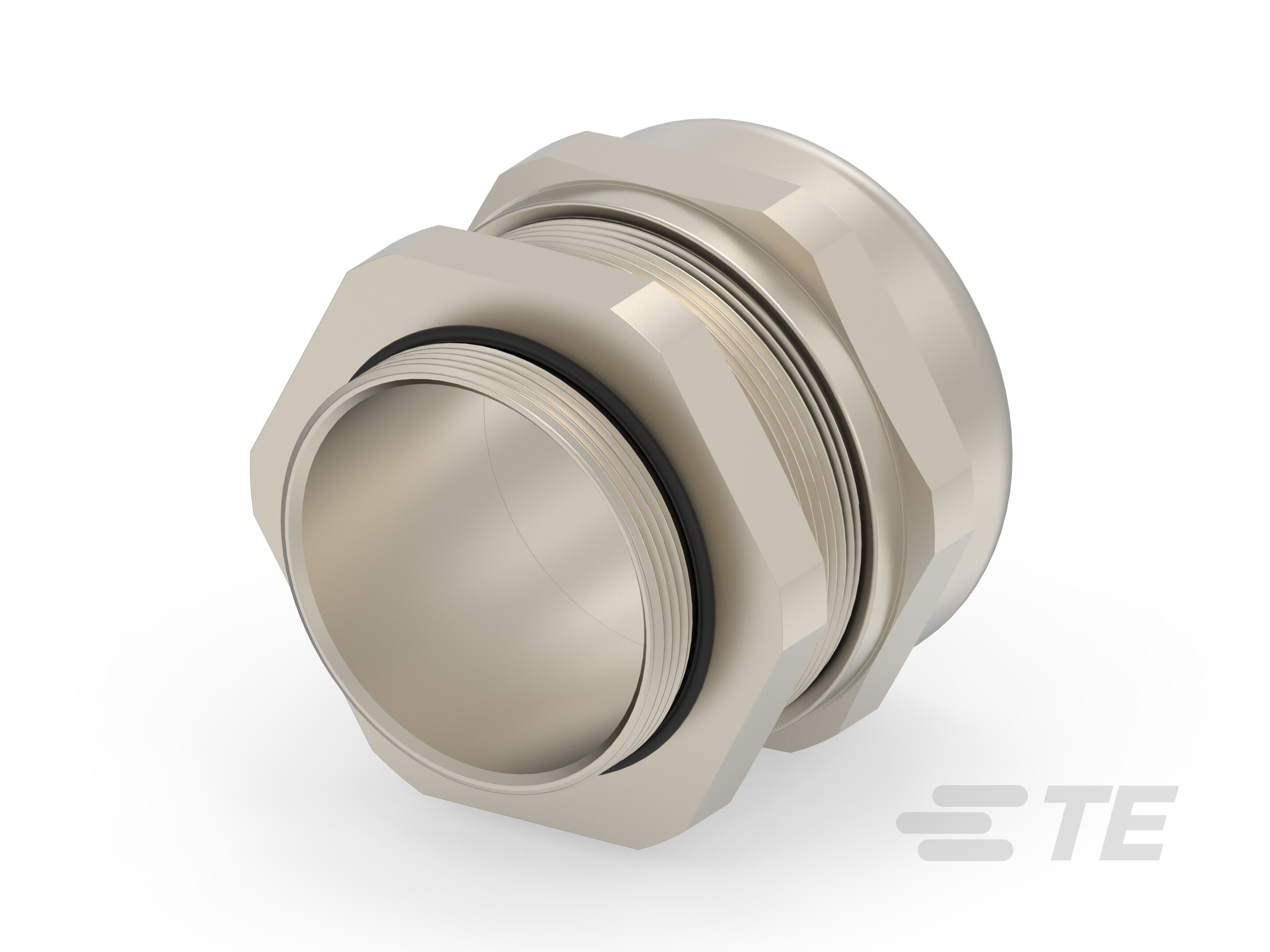

Type	Cable Gland
