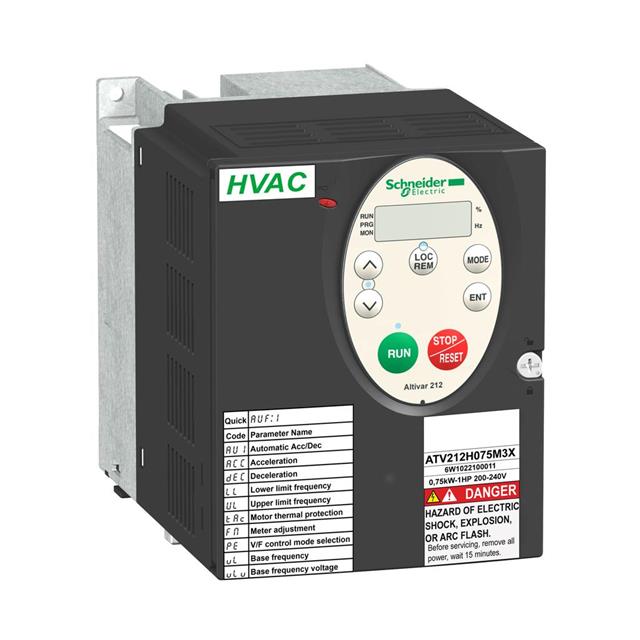

ATV212H075N4
ActiveVARIABLE SPEED DRIVE, ALTIVAR 212 SERIES, ASYNCHRONOUS, THREE PHASE, 750 W, 380 TO 480 VAC
ATV212H075N4
ActiveVARIABLE SPEED DRIVE, ALTIVAR 212 SERIES, ASYNCHRONOUS, THREE PHASE, 750 W, 380 TO 480 VAC
Description
General part information
ATV212H075N4
The ATV212H075N4 is a variable speed AC Drive with heat sink. This drive is for 3-phase 0.75kW asynchronous motors. It is specifically intended for the most commonly encountered fluid management applications. Due to its eco-energy based design, energy savings of up to 70% can be achieved compared to a traditional control system. This commercialized drive comes with an adjustable PI regulator. The electrical isolation is between power and control.
Technical Specifications
Parameters and characteristics for this part
| Specification | ATV212H075N4 |
|---|---|
| Current - Output | 2.2 A |
| Interface | RS-485 |
| Mounting Type | Chassis Mount |
| Number of Motors | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Voltage - Load (Max) | 480 V |
| Voltage - Load (Min) | 380 V |
| Voltage - Supply (Maximum) | 528 VAC |
| Voltage - Supply (Minimum) | 323 V |
| Wattage - Load | 750 W |
