FAA.2S.695.CLA
ActiveLEMO

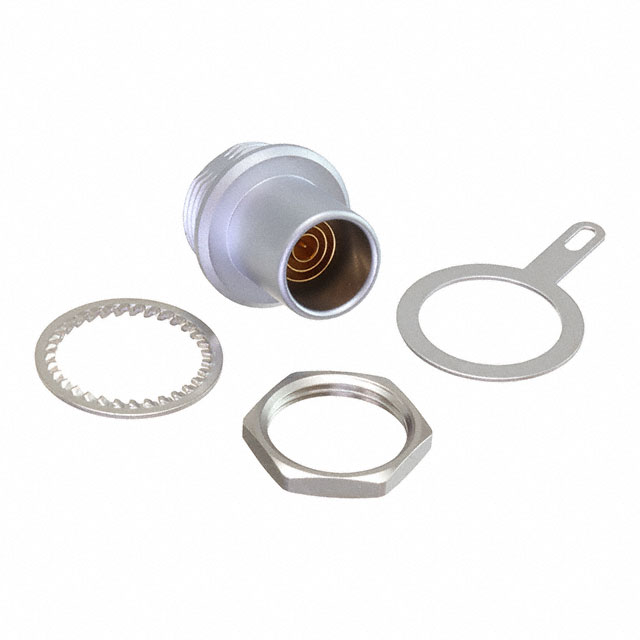

CONN TRIAX PLUG STR 95OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FAA.2S.695.CLA
ActiveLEMO
CONN TRIAX PLUG STR 95OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FAA.2S.695.CLA | FAA.2S Series |
|---|---|---|
| Body Finish | Chrome | Chrome |
| Body Material | Brass | Brass |
| Cable Group | - | 8232A, 9222, RG-174, Belden 8215 |
| Center Contact Material | - | Brass |
| Center Contact Plating | Gold | Gold |
| Color | - | Silver |
| Connector Style | - | Triaxial |
| Connector Type | Male Pin, Plug | Plug, Male Pins, Female Sockets, Male Pin |
| Contact Finish - Mating | - | Gold |
| Contact Material | - | Brass, Bronze |
| Contact Termination | Solder Cup | Solder Cup |
| Current Rating (Amps) | - | 12 - 40 A |
| Dielectric Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull | Push-Pull |
| Housing Color | Silver | Silver |
| Impedance | - | 50 Ohms |
| Includes | - | 1 Nut, 1 Connector |
| Ingress Protection | IP50 | IP50 |
| Insert Material | - | Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK) |
| Material Flammability Rating | - | UL94 V-0 |
| Mating Cycles | 5000 | 1000 - 5000 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Ports | 1 | 1 |
| Number of Positions | - | 1 - 6 |
| Operating Temperature [Max] | 250 °C | 200 - 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | - | Keyed |
| Primary Material | - | Metal |
| Shell Finish | - | Chrome |
| Shell Material | - | Brass |
| Shell Size - Insert | - | 140 - 306 |
| Shield Termination | Solder | Solder |
| Shielding | - | Shielded |
FAA.2S Series
CONN PLUG MALE 1P GOLD SLDR CUP
| Part | Shell Finish | Shell Size - Insert | Primary Material | Insert Material | Current Rating (Amps) | Contact Material | Mounting Feature | Ingress Protection | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Positions | Fastening Type | Orientation | Shielding | Connector Type | Contact Finish - Mating | Material Flammability Rating | Housing Color | Shield Termination | Center Contact Plating | Dielectric Material | Contact Termination | Body Finish | Mating Cycles | Body Material | Number of Ports | Cable Group | Center Contact Material | Connector Style | Impedance | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO FAA.2S.140.CTA | Chrome | 140 | Metal | Polytetrafluoroethylene (PTFE) | 40 A | Brass | Bulkhead - Rear Side Nut | IP50 | Brass | -55 °C | 250 °C | Silver | 1 | Push-Pull | Keyed | Shielded | Male Pins, Plug | Gold | |||||||||||||||
LEMO FAA.2S.306.CLA | Chrome | 306 | Metal | Polyetheretherketone (PEEK) | 12 A | Brass, Bronze | Bulkhead - Rear Side Nut | IP50 | Brass | -55 °C | 250 °C | Silver | 6 | Push-Pull | Keyed | Shielded | Female Sockets, Male Pins, Plug | Gold | UL94 V-0 | ||||||||||||||
LEMO FAA.2S.695.CLA | Bulkhead - Rear Side Nut | IP50 | -55 °C | 250 °C | Push-Pull | Male Pin, Plug | Silver | Solder | Gold | Polyetheretherketone (PEEK) | Solder Cup | Chrome | 5000 | Brass | 1 | ||||||||||||||||||
LEMO FAA.2S.650.CTA | Bulkhead - Rear Side Nut | IP50 | -55 °C | 200 °C | Push-Pull | Male Pin, Plug | Silver | Solder | Gold | Polytetrafluoroethylene (PTFE) | Solder Cup | Chrome | 1000 | Brass | 1 | 8232A, 9222, Belden 8215, RG-174 | Brass | Triaxial | 50 Ohms | 1 Connector, 1 Nut |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 218.93 | |
| 10 | $ 202.88 | |||
| 25 | $ 195.58 | |||
| 50 | $ 194.12 | |||
Description
General part information
FAA.2S Series
Connector Plug, Male Pin Panel Mount Solder Cup
