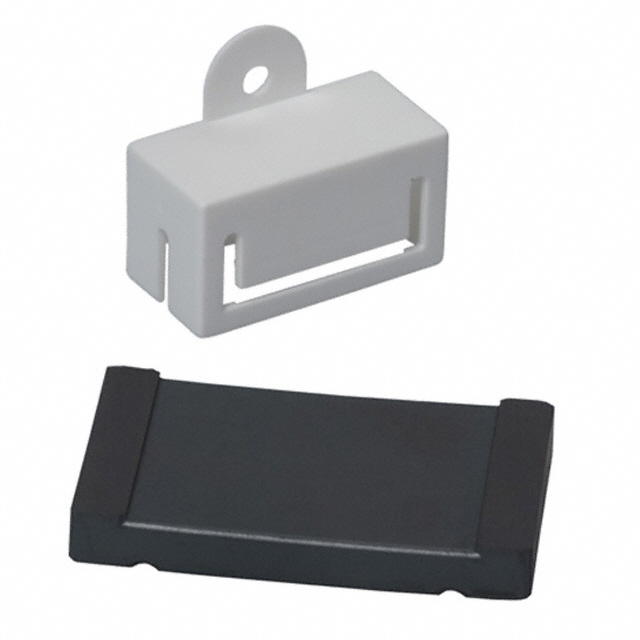

28S2022-0P0
ActiveLaird Technologies EMI
FERRITE CORE 250 OHM CLIP
28S2022-0P0
ActiveLaird Technologies EMI
FERRITE CORE 250 OHM CLIP
Description
General part information
28S2022-0P0
Clip Together (Order Qty 2=1 Assembly) Chassis Mount Ferrite Core 250Ohm @ 100MHz ID 1.355" W x 0.033" H (34.42mm x 0.84mm) OD 1.775" W x 0.250" H (45.09mm x 6.35mm) Length 1.125" (28.58mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 28S2022-0P0 |
|---|---|
| Design | Clip Together |
| Impedance | 250 Ohm |
| Inner Dimension Height | 0.033 in |
| Inner Dimension Width | 1.355 in |
| Length | 1.125 in |
| Material | 28 |
| Material Temperature Rating | 28 °C |
| Mounting Type | Chassis Mount |
| Outer Dimension Height | 0.25 in |
| Outer Dimension Width | 1.775 in |
| Type | Flat |
