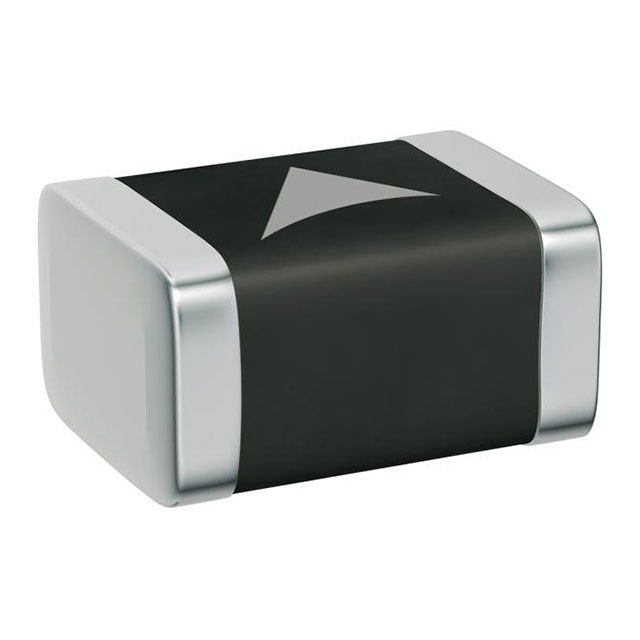

B72530T6250K062
ActiveEPCOS - TDK Electronics
EIA1210, 36VDC, HIGH SURGE 1500A
B72530T6250K062
ActiveEPCOS - TDK Electronics
EIA1210, 36VDC, HIGH SURGE 1500A
Description
General part information
B72530T6250K062
44.5 V 1.5 kA Varistor 1 Circuit Surface Mount 1210 (3225 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | B72530T6250K062 |
|---|---|
| Capacitance | 5000 pF |
| Current - Surge | 1500 A |
| Energy | 4 J |
| Maximum AC Volts | 25 V |
| Maximum DC Voltage | 36 V |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1210 (3225 Metric) |
| Varistor Voltage (Max) | 48.95 V |
| Varistor Voltage (Min) | 40.05 V |
| Varistor Voltage (Typ) | 44.5 V |
