Description
General part information
TJS-106

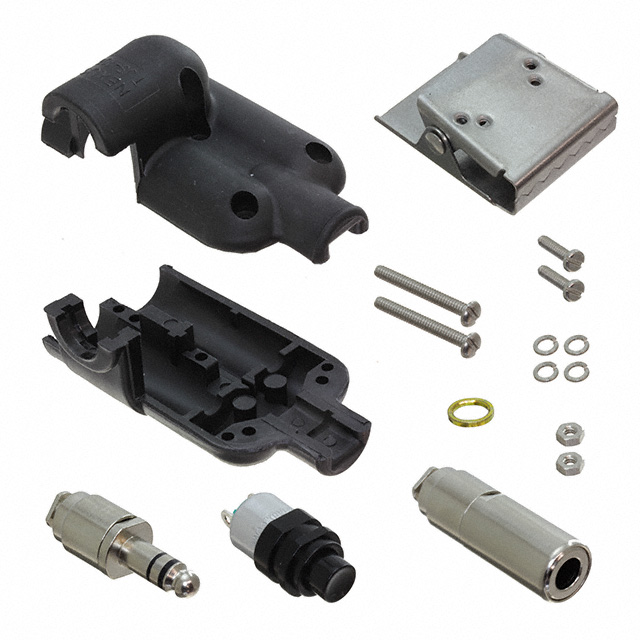

Phone Jack, Biaxial 6 Conductor Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | TJS-106 |
|---|---|
| Actual Diameter | 0.281 in |
| Body Color | Black |
| Connector Type | Phone Jack, Biaxial |
| Contact Material | Beryllium Copper |
| Contact Material - Plating | Nickel |
| Gender | Female, Male |
| Housing Material | Plastic |
| Includes | Strain Relief, Connector, Nuts, Clip, Switch, Contacts, Screws, Washers |
| Includes Total Count | 17 pcs |
| Internal Switch(s) | Single Switch |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 6 Conductors |
| Number of Contacts | 6 Contacts |
| Shielding | Shielded |
| Signal Lines (Count) | 6 Conductor |
| Termination | Solder |
