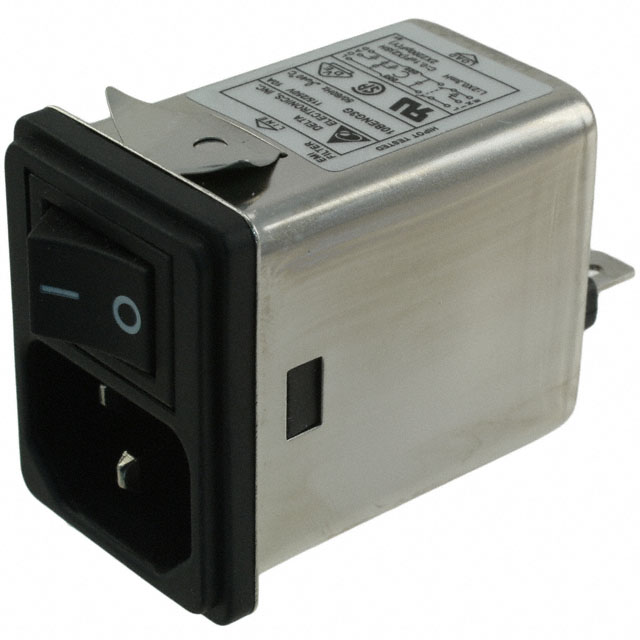

10BENG3G

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10BENG3G	10BENG Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial, Medical, Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	28.25 mm	28.25 mm
Panel Cutout Dimensions [y]	39.7 mm	39.7 mm
Switch Features	Switch On-Off	Switch On-Off
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Current Rating - Appliance Inlet	Mounting Type	Connector Type	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Filter Type	Switch Features	Termination	Connector Style	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Accomodates a Fuse
Delta Electronics 10BENG3GM	10 A	Panel Mount, Snap-In	Receptacle, Male Blades - Module	115 VAC	250 VAC	Filtered (EMI, RFI) - Commercial, Medical	Switch On-Off	Quick Connect	IEC 320-C14	CSA, UL, VDE	39.7 mm	28.25 mm
Delta Electronics 10BENG3G	10 A	Panel Mount, Snap-In	Receptacle, Male Blades - Module	115 VAC	250 VAC	Filtered (EMI, RFI) - Commercial	Switch On-Off	Quick Connect	IEC 320-C14	CSA, UL, VDE	39.7 mm	28.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
