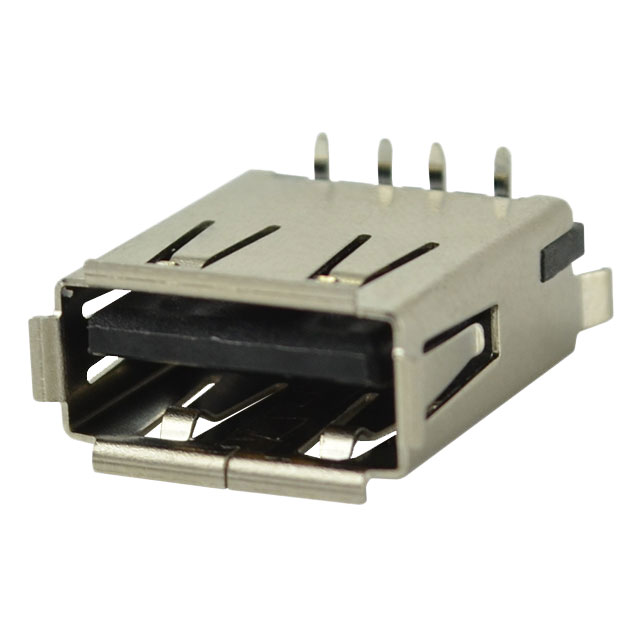

UJ2-AV-2-SMT-TR
ActiveCUI Devices
CONN RCPT USB2.0 TYPEA 4POS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UJ2-AV-2-SMT-TR
ActiveCUI Devices
CONN RCPT USB2.0 TYPEA 4POS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UJ2-AV-2-SMT-TR |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Features | 6.0µ" Finish Thickness Board Lock |
| Gender | Receptacle |
| Insulation Color | Black |
| Mating Cycles | 1500 |
| Mounting Feature | Vertical |
| Mounting Type | Surface Mount |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.29 | |
| 10 | $ 1.09 | |||
| 25 | $ 1.04 | |||
| 50 | $ 1.02 | |||
| 100 | $ 0.98 | |||
| Digi-Reel® | 1 | $ 1.29 | ||
| 10 | $ 1.09 | |||
| 25 | $ 1.04 | |||
| 50 | $ 1.02 | |||
| 100 | $ 0.98 | |||
| Tape & Reel (TR) | 240 | $ 0.62 | ||
| 480 | $ 0.56 | |||
| 1200 | $ 0.55 | |||
Description
General part information
UJ2-AV-2-SMT-TR
USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Surface Mount
