3114BF
ActiveKanebridge
FLANGE BOLT - FLANGED INDENTED H
3114BF
ActiveKanebridge
FLANGE BOLT - FLANGED INDENTED H
Description
General part information
3114BF

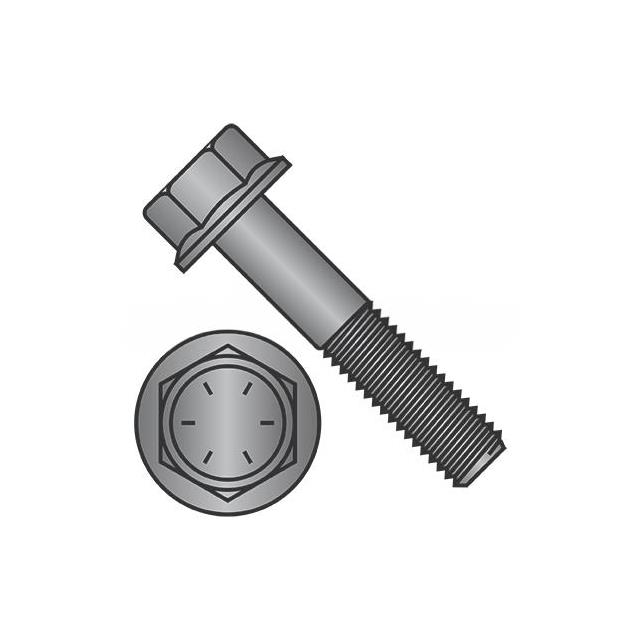

5/16"-18 Indented Hex Head Flange Bolt Hex Socket Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 3114BF |
|---|---|
| Drive Type | External Hex, Hex Socket |
| Features | Flanged |
| Head Diameter | 0.5 in |
| Head Height | 0.32 in |
| Length - Below Head | 0.875 in |
| Length - Overall | 1.195 in |
| Material | Steel |
| Plating | Black Phosphate |
| Screw Head Type | Indented Hex Head |
| Thread Pitch (TPI) | 18 TPI |
| Thread Size (Nominal) | 0.3125 in |
| Type | Flange Bolt |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
