3470-5
ActiveBRADY

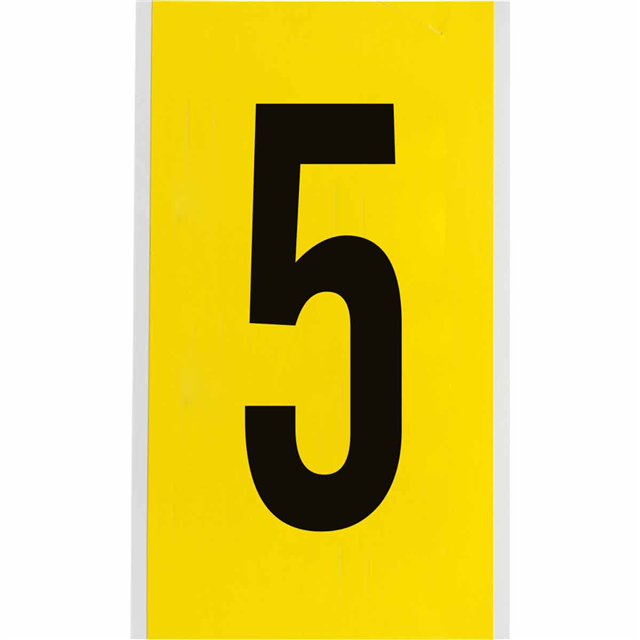

B498 N&L BLK/YEL 3470-5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3470-5
ActiveBRADY
B498 N&L BLK/YEL 3470-5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3470-5 | 3470 Series |
|---|---|---|
| Application Specifics | Alpha/Numeric | Alpha/Numeric, Notice |
| Applications | General | General |
| Arrangement | Text Only | Text Only |
| Color - Background | Yellow | Yellow |
| Color - Legend | Black | Black |
| Features | Corrosion Resistant, Weather Resistant, Chemical Resistant, Humidity Resistant, Abrasion Resistant, UV Resistant | Corrosion Resistant, Weather Resistant, Chemical Resistant, Humidity Resistant, Abrasion Resistant, UV Resistant |
| Label Type | - | Die Cut |
| Language | English | English |
| Legend (Symbol Only) | False | False |
| Legend (Text) | 5 | B, E, 7, 3, X, Z, A, D, F, S, N, 5, J, O, T, I, Q, C |
| Legend (Text) | - | 2 - 9 |
| Length | 9 " | 9 " |
| Length | 228.6 mm | 228.6 mm |
| Material - Body | Vinyl Cloth | Vinyl Cloth |
| Mounting Type | Adhesive | Adhesive |
| Print Type | Pre-Printed | Pre-Printed |
| Ratings | CSA, UL Rated | CSA, UL Rated |
| Shape | Rectangle | Rectangle |
| Width [y] | 127 mm | 127 mm |
| Width [y] | 5 in | 5 in |
3470 Series
B498 N&L BLK/YEL 3470-B
| Part | Shape | Length | Length | Applications | Mounting Type | Legend (Text) | Arrangement | Language | Material - Body | Ratings | Color - Legend | Application Specifics | Legend (Symbol Only) | Width [y] | Width [y] | Features | Print Type | Color - Background | Legend (Text) | Label Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BRADY 3470-B | Rectangle | 9 " | 228.6 mm | General | Adhesive | B | Text Only | English | Vinyl Cloth | CSA, UL Rated | Black | Alpha/Numeric | 127 mm | 5 in | Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant | Pre-Printed | Yellow | |||
BRADY 3470-E | Rectangle | 9 " | 228.6 mm | General | Adhesive | E | Text Only | English | Vinyl Cloth | CSA, UL Rated | Black | Alpha/Numeric | 127 mm | 5 in | Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant | Pre-Printed | Yellow | |||
BRADY 3470-7 | Rectangle | 9 " | 228.6 mm | General | Adhesive | 7 | Text Only | English | Vinyl Cloth | CSA, UL Rated | Black | Alpha/Numeric | 127 mm | 5 in | Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant | Pre-Printed | Yellow | |||
BRADY 3470-3 | Rectangle | 9 " | 228.6 mm | General | Adhesive | 3 | Text Only | English | Vinyl Cloth | CSA, UL Rated | Black | Alpha/Numeric | 127 mm | 5 in | Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant | Pre-Printed | Yellow | |||
BRADY 3470-X | Rectangle | 9 " | 228.6 mm | General | Adhesive | X | Text Only | English | Vinyl Cloth | CSA, UL Rated | Black | Alpha/Numeric | 127 mm | 5 in | Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant | Pre-Printed | Yellow | |||
BRADY 3470-Z | Rectangle | 9 " | 228.6 mm | General | Adhesive | Z | Text Only | English | Vinyl Cloth | CSA, UL Rated | Black | Alpha/Numeric | 127 mm | 5 in | Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant | Pre-Printed | Yellow | |||
BRADY 3470-A | Rectangle | 9 " | 228.6 mm | General | Adhesive | A | Text Only | English | Vinyl Cloth | Black | Alpha/Numeric | 127 mm | 5 in | Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant | Pre-Printed | Yellow | ||||
BRADY 3470-9 | Rectangle | 9 " | 228.6 mm | General | Adhesive | Text Only | English | Vinyl Cloth | CSA, UL Rated | Black | Alpha/Numeric | 127 mm | 5 in | Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant | Pre-Printed | Yellow | 9 | |||
BRADY 3470-BLANK | 9 " | 228.6 mm | General | Vinyl Cloth | 127 mm | 5 in | Yellow | Die Cut | ||||||||||||
BRADY 3470-D | Rectangle | 9 " | 228.6 mm | General | Adhesive | D | Text Only | English | Vinyl Cloth | CSA, UL Rated | Black | Alpha/Numeric | 127 mm | 5 in | Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant | Pre-Printed | Yellow |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.84 | |
Description
General part information
3470 Series
B498 N&L BLK/YEL 3470-5
