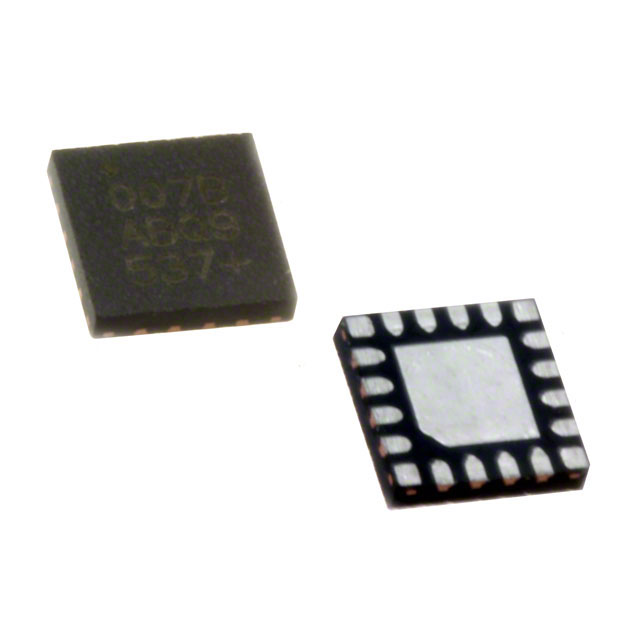

CPT007B-A01-GMR
UnknownSILICON LABS
IC CTLR CAP TOUCH 7CH GPIO 20QFN
CPT007B-A01-GMR
UnknownSILICON LABS
IC CTLR CAP TOUCH 7CH GPIO 20QFN
Description
General part information
CPT007B-A01-GMR
Capacitive Touch Buttons 20-QFN (3x3)
Technical Specifications
Parameters and characteristics for this part
| Specification | CPT007B-A01-GMR |
|---|---|
| Current - Supply | 180 µA |
| Interface | Push-Pull, Open Drain |
| LED Driver Channels (Maximum) | 7 |
| Mounting Type | Surface Mount |
| Number of Inputs (Maximum) | 7 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 20-VFQFN |
| Package Length | 3 mm |
| Package Name | 20-QFN |
| Package Width | 3 mm |
| Proximity Detection | Yes |
| Type | Buttons |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
