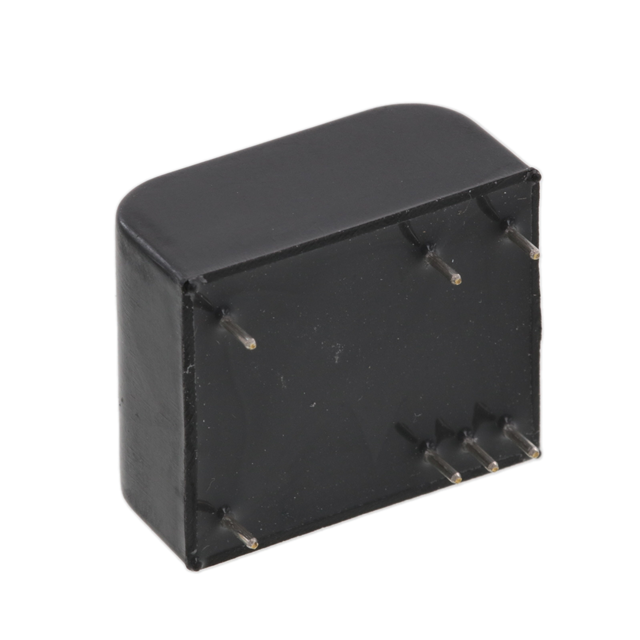

BPWX 0.5-08-00

Active

Cita Technologies, LLC.

AC/DC CONVERTER 8V 1/2W

Search across all available documentation for this part.

Active

Cita Technologies, LLC.

AC/DC CONVERTER 8V 1/2W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 8V 90 ~ 308 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 14V 1/2W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Outputs	Package / Case	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Type	Efficiency	Approval Agency	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Current - Output (Max) [Min]	Power (Watts)	Current - Output (Max)
Cita Technologies, LLC. BPWX 0.5-14-00	85 °C	-40 °C	Through Hole	1	7-DIP Module	90 VAC	308 VAC	14 V	Enclosed	70 %	CB, cURus	ITE (Commercial)	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm
Cita Technologies, LLC. BPWX 0.5-14-33	85 °C	-40 °C	Through Hole	2	7-DIP Module	90 VAC	308 VAC	14 V	Enclosed	70 %	CB, cURus	ITE (Commercial)	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	36 mA	23 mA	441 mW
Cita Technologies, LLC. BPWX 0.5-08-00	85 °C	-40 °C	Through Hole	1	7-DIP Module	90 VAC	308 VAC	8 V	Enclosed	70 %	CB, cURus	ITE (Commercial)	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm
Cita Technologies, LLC. BPWX 0.5-08-33	85 °C	-40 °C	Through Hole	2	7-DIP Module	90 VAC	308 VAC	8 V	Enclosed	70 %	CB, cURus	ITE (Commercial)	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm			632 mW	53 mA, 63 mA
Cita Technologies, LLC. BPWX 0.5-14-50	85 °C	-40 °C	Through Hole	2	7-DIP Module	90 VAC	308 VAC	14 V	Enclosed	70 %	CB, cURus	ITE (Commercial)	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm			572 mW	28 mA, 36 mA
Cita Technologies, LLC. BPWX 0.5-08-50	85 °C	-40 °C	Through Hole	2	7-DIP Module	90 VAC	308 VAC	8 V	Enclosed	70 %	CB, cURus	ITE (Commercial)	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	63 mA		819 mW
