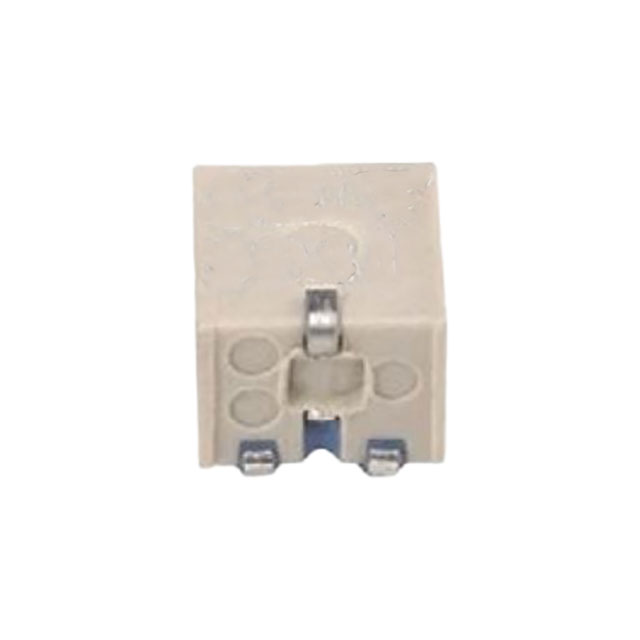

TSM4YJ105KR05
ActiveVishay Dale
TRIMMER 1M OHM 0.04W GW TOP ADJ
TSM4YJ105KR05
ActiveVishay Dale
TRIMMER 1M OHM 0.04W GW TOP ADJ
Description
General part information
TSM4YJ105KR05
1 MOhms 0.04W Gull Wing Surface Mount Trimmer Potentiometer Cermet 13.0 Turn Top Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | TSM4YJ105KR05 |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 13 turns |
| Power (Watts) | 40 mW |
| Resistance | 1 MOhm |
| Resistive Material | Cermet |
| Size / Dimension Length | 0.189 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.138 in |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | Gull Wing |
| Tolerance | 10 % |
