LFB143064-000
ActiveLaird Technologies EMI
FERRITE CORE 120 OHM SOLID
LFB143064-000
ActiveLaird Technologies EMI
FERRITE CORE 120 OHM SOLID
Description
General part information
LFB143064-000

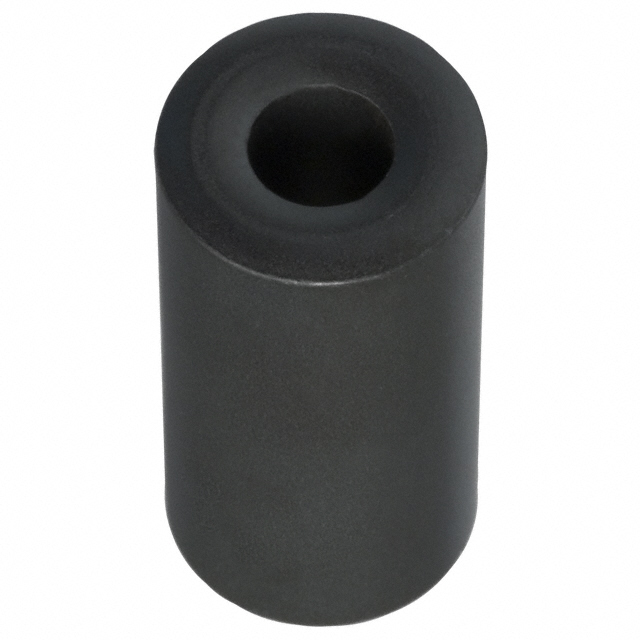

Solid Free Hanging Ferrite Core 120Ohm @ 5MHz ID 0.250" Dia (6.35mm) OD 0.562" Dia (14.27mm) Length 1.125" (28.58mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LFB143064-000 |
|---|---|
| Design | Solid |
| Impedance | 120 Ohm |
| Inner Dimension (Diameter) | 0.25 in |
| Length | 1.125 in |
| Material | LF |
| Mounting Type | Free Hanging |
| Outer Dimension (Diameter) | 0.562 in |
| Type | Round |
