T1611110
ObsoleteRed Lion Controls
CONTROL TEMP REL OUT 24V 18-36V
T1611110
ObsoleteRed Lion Controls
CONTROL TEMP REL OUT 24V 18-36V
Description
General part information
T1611110

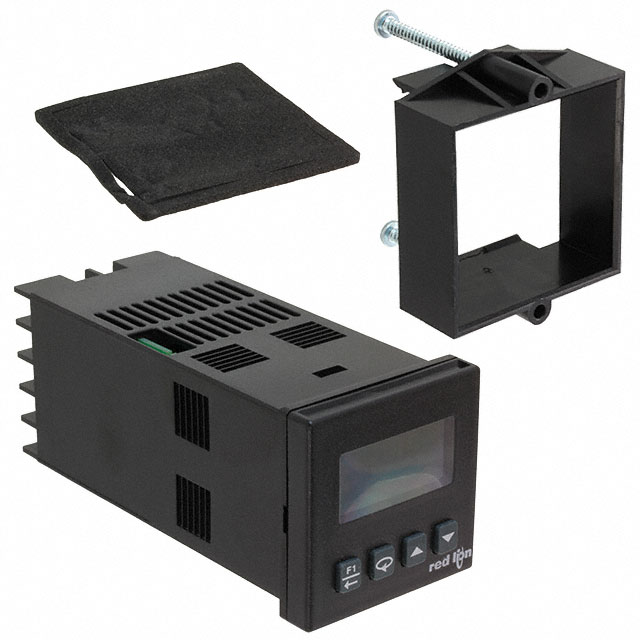

Temperature Controller (RTD, Type B, C, E, J, K, N, R, S, T) 24VAC, 18 ~ 36VDC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | T1611110 |
|---|---|
| Control Method | Off, Proportional (PID), On |
| Display Characters - Height | 0.299 in |
| Display Characters - Height (Option 2) | 0.2 in |
| Display Type | LCD - Dual Color Characters, Backlight |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Input Temperature (Max) | 2315 °C |
| Input Temperature (Min) | -200 °C |
| Maximum Number of Characters Per Row | 4 characters |
| Minimum Number of Characters Per Row | 4 characters |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Output Type | Relay |
| Panel Cutout Length | 45 mm |
| Panel Cutout Shape | Square |
| Panel Cutout Width | 45 mm |
| Relay (Count) | 3 |
| Termination Style | Screw Terminal |
| Type | R, Temperature Controller (RTD, T), E, N, S, J, Type B, C, K |
| Voltage - Supply | 24 VDC |
| Voltage - Supply (Maximum) | 36 VDC |
| Voltage - Supply (Minimum) | 18 VAC |
| Voltage - Supply (Option 1) | 24 VAC |
| Voltage - Supply (Range 1 Maximum) | 24 VDC |
| Voltage - Supply (Range 1 Minimum) | 24 VAC |
| Voltage - Supply (Range 2 Maximum) | 36 V |
| Voltage - Supply (Range 2 Minimum) | 18 VDC |
| Voltage - Supply Maximum | 36 VDC |
| Voltage - Supply Minimum | 18 VDC |
| Weight | 0.395 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
