TC-402-SM-LP-LC
ActivePasternack
SMA MALE LOW PIM CONNECTOR SOLDE
TC-402-SM-LP-LC
ActivePasternack
SMA MALE LOW PIM CONNECTOR SOLDE
Description
General part information
TC-402-SM-LP-LC

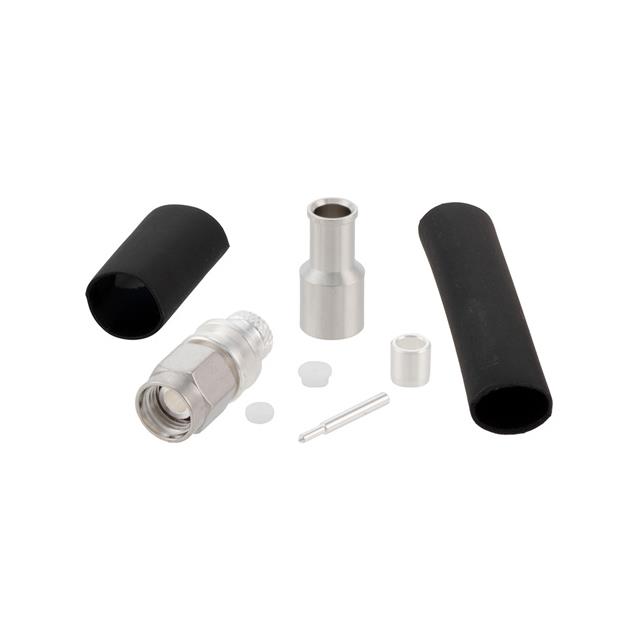

SMA Connector Plug, Male Pin Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | TC-402-SM-LP-LC |
|---|---|
| Cable Group | TFT-402LF, RG-402 |
| Cable Group Diameter (Semi Rigid) | 0.141 in |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
