Description
General part information

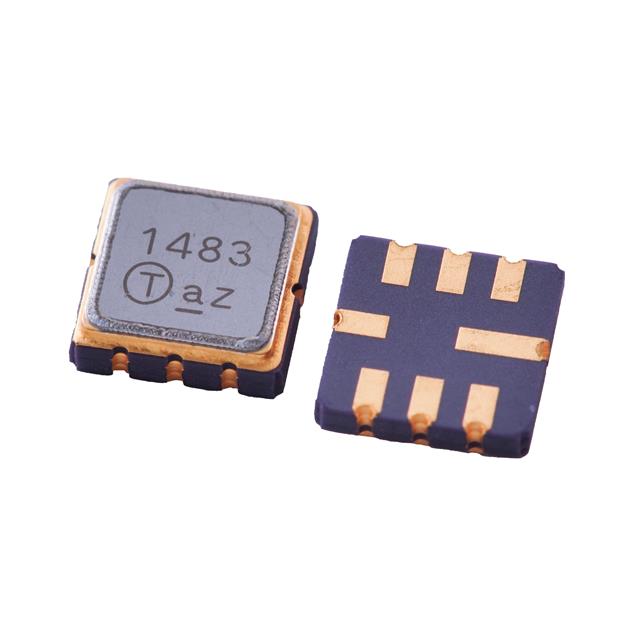

TB1208A
149.64MHz Frequency IF RF SAW Filter (Surface Acoustic Wave) 15.6dB 121.7MHz, 176.1MHz Bandwidth 8-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | TB1208A |
|---|---|
| Applications | IF |
| Bandwidth | 176.1 MHz, 121.7 MHz |
| Frequency - Center | 149.64 MHz |
| Height (Max) | 0.067 in |
| Insertion Loss | 15.6 dB |
| Mounting Type | Surface Mount |
| Package / Case | No Lead, 8-SMD |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.197 in |
