1490D3

Active

Hammond Manufacturing

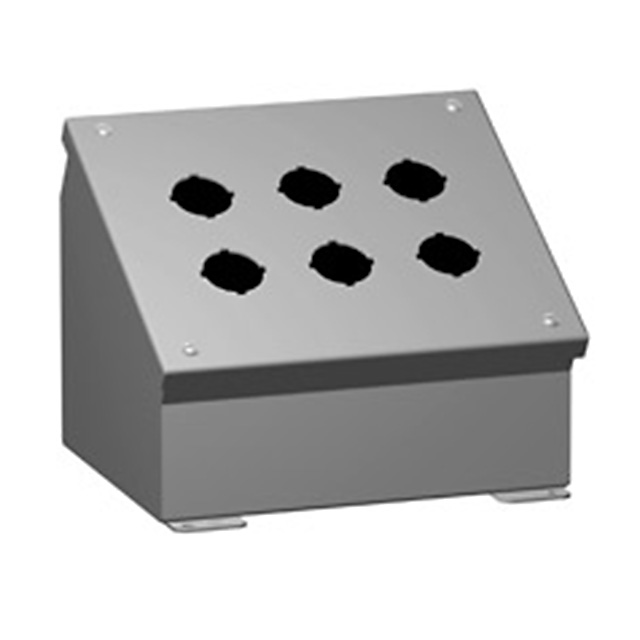

CONSOLE STEEL GRY 7.75"L X 3.5"W

Deep-Dive with AI

Search across all available documentation for this part.

1490D3

Active

Hammond Manufacturing

CONSOLE STEEL GRY 7.75"L X 3.5"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 114.35

Description

General part information

1490 Series

Console Metal, Steel Gray Cover Included, Slanted Top 7.750" L x 3.500" W (196.85mm x 88.90mm) X 4.880" (123.95mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1490D3	1490 Series

Area (L x W)	27.1 in²	11.5 - 214 in²
Area (L x W)	175 cm²	74 - 1381 cm²
Area (L x W)	-	35 in²
Area (L x W)	-	226 cm²
Color	Gray	Gray
Container Type	Console	Console
Design	Slanted Top, Cover Included	Slanted Top, Cover Included, Hinged Lid
Features	Slope	Slope, Pushbutton Holes - 16, Pushbutton Holes - 6, Pushbutton Holes - 9, Pushbutton Holes - 25
Features	3, 60 °, 30 °	3 - 60
Features	-	1 - 30
Height [z]	4.88 in	4.88 - 10.13 in
Height [z]	123.95 mm	123.95 - 257.3 mm
Material	Metal, Steel	Metal, Steel
Ratings	UL-508, NEMA 13, IP54, JIC EGP-1-1967, NEMA 12	UL-508, NEMA 13, IP54, JIC EGP-1-1967, NEMA 12
Size / Dimension	-	10 "
Size / Dimension	-	3.5 "
Size / Dimension [x]	196.85 mm	88.9 - 501.65 mm
Size / Dimension [x]	7.75 "	3.5 - 19.75 "
Size / Dimension [y]	3.5 in	3.25 - 14 in
Size / Dimension [y]	88.9 mm	82.55 - 355.6 mm
Thickness	14 Gauge	14 Gauge
Weight	2.3 kg	1.4 - 907.2 kg
Weight	5 lbs	2 - 19 lbs

1490 Series

CONSOLE STEEL GRY 7.75"L X 3.5"W

Part	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Features	Features	Container Type	Thickness	Ratings	Color	Design	Material	Features [custom]	Size / Dimension [x]	Size / Dimension [y]	Area (L x W) [custom]	Area (L x W) [custom]
Hammond Manufacturing 1490MD3	4.88 in	123.95 mm	27.1 in²	175 cm²	2.3 kg	5 lbs	3.5 in	196.85 mm	7.75 "	88.9 mm	Slope	3, 30 °, 60 °	Console	14 Gauge	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Gray	Cover Included, Slanted Top	Metal, Steel
Hammond Manufacturing 1490D4	4.88 in	123.95 mm			2.7 kg	6 lbs		254 mm		88.9 mm	Slope	30 °, 60 °	Console	14 Gauge	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Gray	Cover Included, Slanted Top	Metal, Steel	4	10 "	3.5 "	35 in²	226 cm²
Hammond Manufacturing 1490MD1	4.88 in	123.95 mm	11.5 in²	74 cm²	907.2 g	2 lbs	3.25 "	88.9 mm	3.5 in	82.55 mm	Slope	30 °, 60 °	Console	14 Gauge	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Gray	Cover Included, Slanted Top	Metal, Steel	1
Hammond Manufacturing 1490D2	4.88 in	123.95 mm	19.3 in˛	125 cm˛	1.4 kg	3.1 lbs	3.5 in	139.7 mm	5.5 in	88.9 mm	Slope	30 °, 60 °	Console	14 Gauge	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Gray	Cover Included, Slanted Top	Metal, Steel	2
Hammond Manufacturing 1490J16	9 in	228.6 mm	126 in²	813 cm²	6.4 kg	14 lb	10.75 in	298.45 mm	11.75 in	273.05 mm	Pushbutton Holes - 16, Slope	30 °, 60 °	Console	14 Gauge	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Gray	Hinged Lid, Slanted Top	Metal, Steel
Hammond Manufacturing 1490G6	6.75 in	171.45 mm	61.5 in˛	397 cm˛	3.2 kg	7 lbs	7.25 in	215.9 mm	8.5 in	184.15 mm	Pushbutton Holes - 6, Slope	30 °, 60 °	Console	14 Gauge	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Gray	Hinged Lid, Slanted Top	Metal, Steel
Hammond Manufacturing 1490G12	6.75 in	171.45 mm	111 in²	716 cm²	5 kg	11 lbs	7.25 in	387.35 mm	15.25 in	184.15 mm	Slope	12, 30 °, 60 °	Console	14 Gauge	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Gray	Hinged Lid, Slanted Top	Metal, Steel
Hammond Manufacturing 1490MG8	6.75 in	171.45 mm	77.9 in²	503 cm²	4.1 kg	9 lbs	7.25 in	273.05 mm	10.75 in	184.15 mm	Slope	30 °, 60 °	Console	14 Gauge	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Gray	Hinged Lid, Slanted Top	Metal, Steel	8
Hammond Manufacturing 1490H9	7.88 in	200.15 mm	80.8 in²	521 cm²	4.1 kg	9 lbs	8.5 "	241.3 mm	9.5 "	215.9 mm	Pushbutton Holes - 9, Slope	30 °, 60 °	Console	14 Gauge	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Gray	Hinged Lid, Slanted Top	Metal, Steel
Hammond Manufacturing 1490D1	4.88 in	123.95 mm	11.5 in²	74 cm²	907.2 g	2 lbs	3.25 "	88.9 mm	3.5 in	82.55 mm	Slope	30 °, 60 °	Console	14 Gauge	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Gray	Cover Included, Slanted Top	Metal, Steel	1
