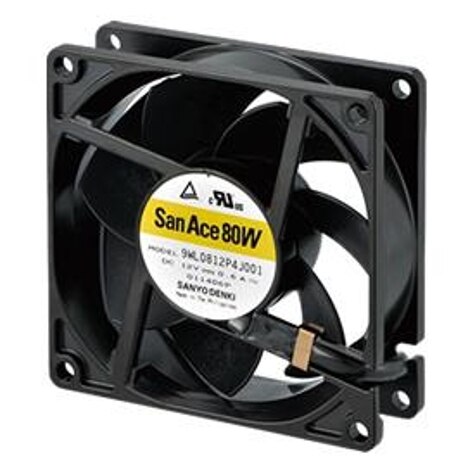

Specification	9WL0824J4002

Approval Agency	cURus, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Protection
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Size / Dimension Height	80 mm
Size / Dimension Length	80 mm
Size / Dimension Shape	Square
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Width	25 mm

9WL Type Series

DC Fans Axial Fan, 60x60x25mm, 24VDC, Splash/Dust Proof, Long Life 180Khr, Ribless, IP68

Part	Material - Frame	Material - Blade	Bearing Type	Features	Termination Leads Count	Termination Type	Termination	Approval Agency	Voltage - Rated	Width	Fan Type	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Power (Watts)	Operating Temperature (Min)	Operating Temperature (Max)	Static Pressure	Air Flow	Noise	Ingress Protection IP Rating	Ingress Protection Description	RPM	Current Rating	Lifetime	Voltage Range (Max)	Voltage Range (Min)	Weight	Lifetime
Sanyo Denki America Inc. 9WL0624S4002	Aluminum	Plastic	Ball	Locked Rotor Protection	2 leads	Wire Leads	2 Wire Leads	cURus TUV	24 VAC	25 mm	Tubeaxial	60 mm	Square	60 mm
Sanyo Denki America Inc. 9WL1448H5001	Aluminum	Plastic	Ball	Speed Sensor (Tach)	3	Wire Leads	3 Wire Leads		48 VDC	51 mm	Tubeaxial	140 mm	Square	140 mm	14.9 W
Sanyo Denki America Inc. 9WL1448M5001	Aluminum	Plastic	Ball	Locked Rotor Protection Speed Sensor (Tach)	3	Wire Leads	3 Wire Leads	cURus TUV	48 VDC	51 mm	Tubeaxial	140 mm	Square	140 mm	7.2 W	-4 °F	158 °F	0.4 in H2O	109.5 CFM	40 dB	IP68	Dust Tight Waterproof	2600 RPM	150 mA	Varies Based on Temperature	55.2 VDC	40.8 VDC
Sanyo Denki America Inc. 9WL0812P4H001			Ball	PWM Control Speed Sensor (Tach)	4 leads	Wire Leads	4 Wire Leads	CSA TUV UL	12 VAC	25 mm	Tubeaxial	80 mm	Square	80 mm	1.44 W	-4 °F	158 °F	0.17 in H2O	36.3 CFM	31 dB	IP68	Dust Tight Waterproof	3700 RPM					0.331 lb
Sanyo Denki America Inc. 9WL0912M4001	Aluminum	Plastic	Ball	Locked Rotor Protection Speed Sensor (Tach)	3	Wire Leads	3 Wire Leads	cURus TUV	12 VAC	25 mm	Tubeaxial	92 mm	Square	92 mm	960 mW	-4 °F	158 °F	0.097 in H2O	37.1 CFM	24 dB	IP68	Dust Tight Waterproof	2400 RPM	0.08 A	Varies Based on Temperature	13.8 VDC	10.2 VDC
Sanyo Denki America Inc. 9WL1424G5D001	Aluminum	Plastic	Ball	Locked Rotor Sensor	3	Wire Leads	3 Wire Leads	cURus TUV	24 VAC	51 mm	Tubeaxial	140 mm	Square	140 mm							IP68	Dust Tight Waterproof
Sanyo Denki America Inc. 9WL0812H4001	Aluminum	Plastic	Ball	Speed Sensor (Tach)	3	Wire Leads	3 Wire Leads		12 VAC	25 mm	Tubeaxial	80 mm	Square	80 mm	1.44 W
Sanyo Denki America Inc. 9WL0824P4J001	Aluminum	Plastic	Ball	PWM Control Speed Sensor (Tach)	4 leads	Wire Leads	4 Wire Leads	CSA TUV UL	24 VAC	25 mm	Tubeaxial	80 mm	Square	80 mm	6.72 W	-4 °F	158 °F	0.71 in H2O	73 CFM	49 dB	IP68	Dust Tight Waterproof	7400 RPM	0.28 A		26.4 VDC	21.6 VDC	0.331 lb	180000 Hrs
Sanyo Denki America Inc. 9WL1412H5D001	Aluminum	Plastic	Ball	Locked Rotor Sensor	3	Wire Leads	3 Wire Leads	cURus TUV	12 VAC	51 mm	Tubeaxial	140 mm	Square	140 mm							IP68	Dust Tight Waterproof
Sanyo Denki America Inc. 9WL0924H4002	Aluminum	Plastic	Ball		2 leads	Wire Leads	2 Wire Leads		24 VAC	25 mm	Tubeaxial	92 mm	Square	92 mm	1.68 W
