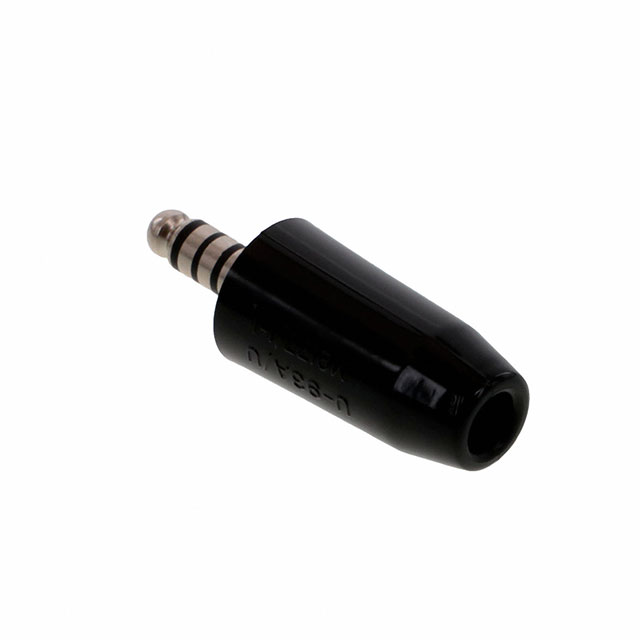

TP-102
ActiveMcGill Microwave Systems
TELEPHONE PLUG INLINE 4 CONDUCTO
TP-102
ActiveMcGill Microwave Systems
TELEPHONE PLUG INLINE 4 CONDUCTO
Description
General part information
TP-102
Phone Plug Stereo (4 Conductor, TRRS) Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | TP-102 |
|---|---|
| Actual Diameter | 0.281 in |
| Body Color | Black, Silver |
| Cable Opening | 0.318 in |
| Connector Type | Phone Plug |
| Contact Material | Brass |
| Contact Material - Plating | Nickel |
| Gender | Male |
| Grade | Military |
| Housing Material | PC, Polycarbonate |
| Includes | Connector, Handle |
| Includes Total Count | 2 pcs |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.761 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 4 Conductors |
| Number of Contacts | 4 Contacts |
| Qualification | MIL-C-9177 |
| Shielding | Unshielded |
| Signal Lines | 4 Conductor, TRRS, Stereo |
| Termination | Solder |
