AIUR-02H-821K
ActiveAbracon LLC
FIXED IND 820UH 240MA 1.03OHM TH
AIUR-02H-821K
ActiveAbracon LLC
FIXED IND 820UH 240MA 1.03OHM TH
Description
General part information
AIUR-02H-821K

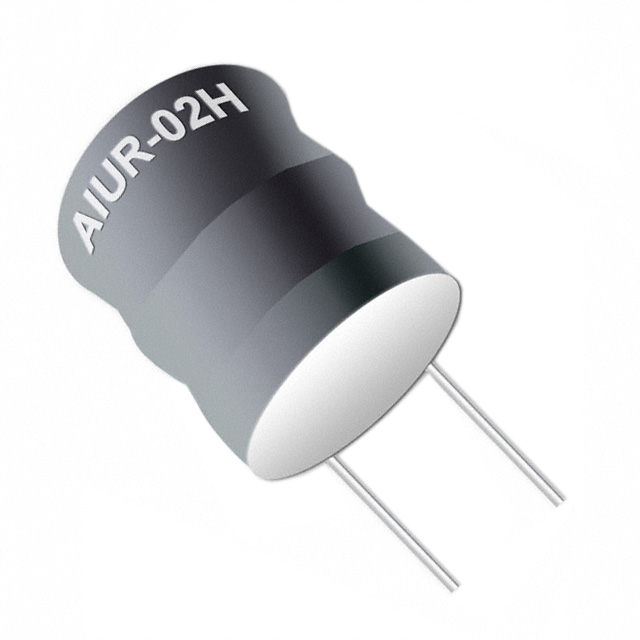

820 µH Unshielded Drum Core, Wirewound Inductor 240 mA 1.03Ohm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | AIUR-02H-821K |
|---|---|
| Current - Saturation (Isat) | 0.56 mA |
| Current Rating | 0.24 A |
| DC Resistance (DCR) (Max) | 1.03 Ohm |
| Height - Seated (Max) | 0.472 in |
| Inductance | 0.82 mH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Vertical Cylinder, Radial |
| Q | 15 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.335 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
