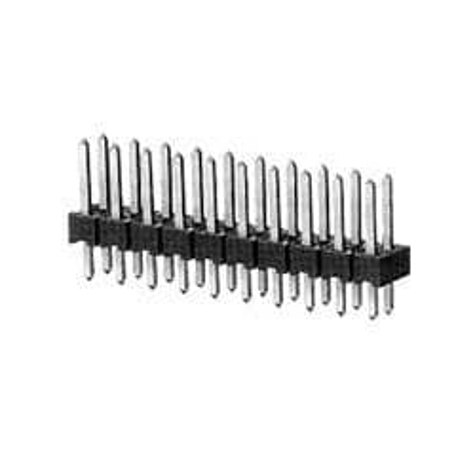

Specification	9-146262-0

Connector Type	Breakaway, Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	100 µin
Contact Finish Thickness - Post	100 Ąin
Contact Length - Mating	0.318 in
Contact Length - Post	0.125 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.09 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-65 °C
Overall Contact Length	0.533 in
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Kinked Pin, Solder

AMPMODU MOD II Series

...

Part	Contact Finish - Post (Mating)	Number of Positions	Length - Stack Height	Number of Rows	Length - Tail	Pitch	Color	Contact Finish Thickness - Post (Mating)	Length - Post (Mating)	Termination	Mounting Type	Length - Overall Pin	Row Spacing	Contact Length - Post	Connector Type	Current Rating	Contact Shape	Number of Positions Loaded	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Post	Shrouding	Insulation Height	Voltage Rating	Row Spacing - Mating	Contact Length - Mating	Material Flammability Rating	Fastening Type	Pitch - Mating	Contact Type	Insulation Material	Contact Material	Contact Finish Thickness - Mating	Contact Finish - Mating	Style	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)	Contact Finish Thickness - Post	Features
TE Connectivity AMP Connectors 1-966771-8	Gold	18	0.22 in	1	0.323 in	0.1 in	Green	31.5 µin	0.323 in	Solder	Through Hole	0.866 in
TE Connectivity AMP Connectors 5-146500-5	Gold	10	0.7 in	2	0.1 in	0.1 in	Black	15 µin	0.33 in	Solder	Through Hole	1.13 in	0.1 in
TE Connectivity AMP Connectors 5-146466-9	Gold	9	0.5 in	1	0.33 in	0.1 in	Black	15 µin	0.1 in	Solder	Through Hole	0.93 in
TE Connectivity AMP Connectors 6-146459-2	Tin	12	0.4 in	1	0.11 in	0.1 in	Black	100 µin	0.107 in	Solder	Through Hole	0.617 in
TE Connectivity AMP Connectors 102690-6		80		2						Press-Fit Solder	Through Hole			0.25 in	Header	3 A	Square	All	105 °C	-65 °C	Tin-Lead	Shrouded - 4 Wall	0.55 in	250 V	0.1 in	0.32 in	UL94 V-0	Push-Pull	0.1 in	Male Pin	Thermoplastic	Copper Alloy	30 µin	Gold	Board Board or Cable	Black
TE Connectivity AMP Connectors 87232-9		9		1						Solder	Right Angle Through Hole			0.11 in	Header	3 A	Square	All	105 °C	-65 °C	Gold	Unshrouded	0.138 in			0.318 in	UL94 V-0	Push-Pull	0.1 in	Male Pin	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	30 µin	Gold	Board Board or Cable	Black	Flash	Flash
TE Connectivity AMP Connectors 6-146458-1	Tin	11	0.3 in	1	0.11 in	0.1 in	Black	100 µin	0.123 in	Solder	Through Hole	0.533 in
TE Connectivity AMP Connectors 966709-5		10		2						Solder	Surface Mount				Breakaway Header	5 A	Square	All	105 °C	-65 °C	Tin	Unshrouded	0.11 in		0.1 in	0.228 in		Push-Pull	0.1 in	Male Pin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT)	Phosphor Bronze	3.9 µin	Gold	Board Board or Cable	Black			118.1 µin
TE Connectivity AMP Connectors 5-147447-5		10		2						Solder	Surface Mount				Breakaway Header		Square	All	105 °C	-65 °C	Tin	Unshrouded	0.09 in	30 V	0.1 in	0.32 in	UL94 V-0	Push-Pull	0.1 in	Male Pin	Liquid Crystal Polymer (LCP)	Copper Alloy	30 µin	Gold	Board Board or Cable	Black				Pick and Place
TE Connectivity AMP Connectors 7-146456-0	Tin	20	0.25 in	1	0.11 in	0.1 in	Black	100 µin	0.08 in	Solder	Through Hole	0.44 in
