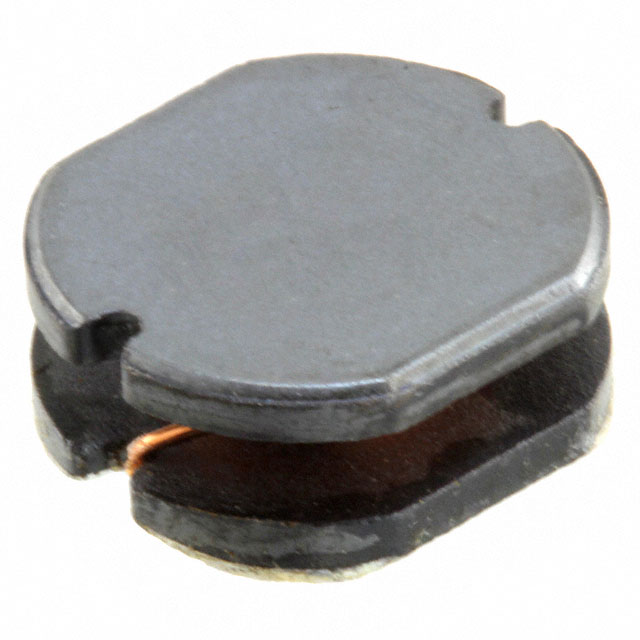

CD104NP-180MC
ActiveSumida America Components Inc.
FIXED IND 18UH 1.73A 81 MOHM SMD
CD104NP-180MC
ActiveSumida America Components Inc.
FIXED IND 18UH 1.73A 81 MOHM SMD
Description
General part information
CD104NP-180MC
18 µH Unshielded Inductor 1.73 A 81mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CD104NP-180MC |
|---|---|
| Current Rating | 1.73 A |
| DC Resistance (DCR) (Max) | 81 mOhm |
| Frequency - Self Resonant | 23 MHz |
| Height - Seated (Max) | 0.177 in |
| Inductance | 18 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Width | 0.354 in |
| Tolerance | 20 % |
