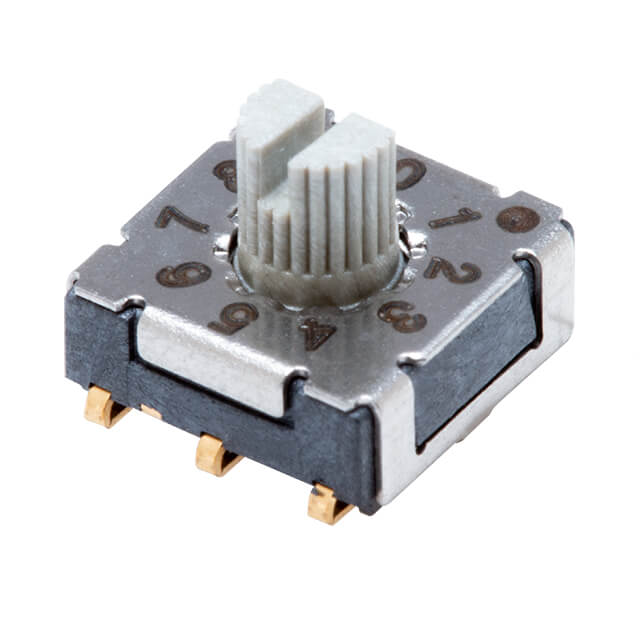

Specification	RDS-10S-7229-S-JSMT-TR

Actuator Level	Raised
Actuator Type	Rotary with Shaft
Body Material	Liquid Crystal Polymer, LCP
Circuit	BCD
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating	100 mA
Electrical Life (Steps)	10000 Steps
Features	IP67, Dust Tight, Waterproof
Height Above Board	0.236 in
Length	0.283 in
Mounting Type	Surface Mount
Number of Positions	10
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Pitch Type	Full
Termination Style	J Lead
Voltage Rating	50 V
Washable	No

RDS-10S Series

...

Part	Pitch	Pitch Type	Voltage Rating	Termination Style	Features	Mounting Type	Actuator Level	Contact Material	Contact Finish	Length	Actuator Type	Electrical Life (Steps)	Circuit	Body Material	Washable	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Height Above Board
Same Sky (Formerly CUI Devices) RDS-10S-7229-R-D	0.1 in	Full	50 V	PC Pin	Dust Tight IP67 Waterproof	Through Hole	Raised	Copper Alloy	Gold	0.283 in	Rotary with Shaft	10000 Steps	BCD	LCP Liquid Crystal Polymer	No	100 mA	-40 °C	85 °C	10	0.232 in
Same Sky (Formerly CUI Devices) RDS-10S-7229-S-SMT-TR	0.1 in	Full	50 V	Gull Wing	Dust Tight IP67 Waterproof	Surface Mount	Raised	Copper Alloy	Gold	0.283 in	Rotary with Shaft	10000 Steps	BCD	LCP Liquid Crystal Polymer	No	100 mA	-40 °C	85 °C	10	0.236 in
Same Sky (Formerly CUI Devices) RDS-10S-7229-A-SMT-TR	0.1 in	Full	50 V	Gull Wing	Dust Tight IP67 Waterproof	Surface Mount	Flush Recessed	Copper Alloy	Gold	0.283 in	Rotary for Tool	10000 Steps	BCD	LCP Liquid Crystal Polymer	No	100 mA	-40 °C	85 °C	10	0.118 in
Same Sky (Formerly CUI Devices) RDS-10S-7229-A-SMT	0.1 in	Full	50 V	Gull Wing	Dust Tight IP67 Waterproof	Surface Mount	Flush Recessed	Copper Alloy	Gold	0.283 in	Rotary for Tool	10000 Steps	BCD	LCP Liquid Crystal Polymer	No	100 mA	-40 °C	85 °C	10	0.118 in
Same Sky (Formerly CUI Devices) RDS-10S-7229-C-ASMT-TR	0.05 in	Half	50 V	Gull Wing	Dust Tight IP67 Waterproof	Right Angle Surface Mount	Flush Recessed	Copper Alloy	Gold	0.283 in	Rotary for Tool	10000 Steps	BCD	LCP Liquid Crystal Polymer	No	100 mA	-40 °C	85 °C	10	0.291 in
Same Sky (Formerly CUI Devices) RDS-10S-7229-S-D	0.1 in	Full	50 V	PC Pin	Dust Tight IP67 Waterproof	Through Hole	Raised	Copper Alloy	Gold	0.283 in	Rotary with Shaft	10000 Steps	BCD	LCP Liquid Crystal Polymer	No	100 mA	-40 °C	85 °C	10	0.232 in
Same Sky (Formerly CUI Devices) RDS-10S-74365-45A-D	0.1 in	Full	42 V	PC Pin	Dust Tight IP67 Waterproof	Through Hole	Raised	Copper Alloy	Gold		Rotary with Shaft		BCD		No	100 mA	-60 °C	125 °C	10
Same Sky (Formerly CUI Devices) RDS-10S-7229-A-JSMT-TR	0.1 in	Full	50 V	J Lead	Dust Tight IP67 Waterproof	Surface Mount	Flush Recessed	Copper Alloy	Gold		Rotary for Tool		BCD		No	100 mA	-40 °C	85 °C	10	0.118 in
Same Sky (Formerly CUI Devices) RDS-10S-74385-SMT	0.1 in	Full	42 V	Gull Wing	Dust Tight IP67 Waterproof	Surface Mount	Flush Recessed	Copper Alloy	Gold	0.291 in	Rotary for Tool	25000 Steps	BCD	LCP Liquid Crystal Polymer	No	100 mA	-60 °C	125 °C	10	0.152 in
Same Sky (Formerly CUI Devices) RDS-10S-7229-R-JSMT-TR	0.1 in	Full	50 V	J Lead	Dust Tight IP67 Waterproof	Surface Mount	Raised	Copper Alloy	Gold		Rotary with Shaft		BCD		No	100 mA	-40 °C	85 °C	10	0.236 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

rds-7229-jsmt.pdf
