Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 84.29 | |
| 10 | $ 79.61 | |||
General part information

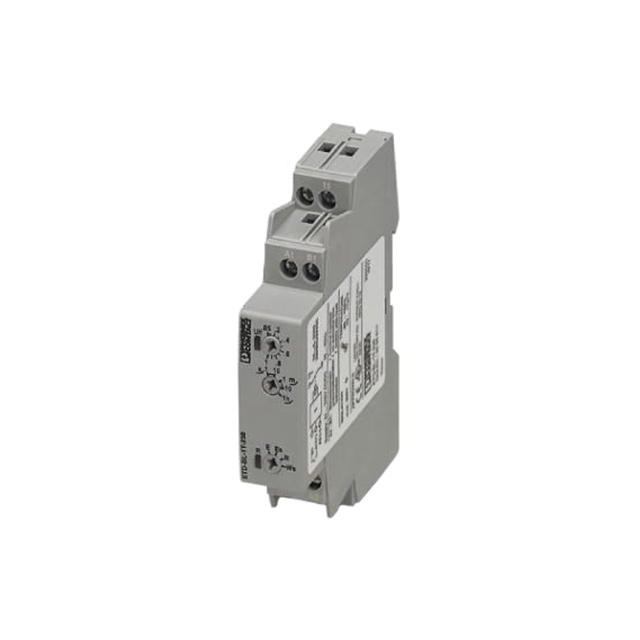

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) 0.05 Sec ~ 1 Hr Delay 5A @ 250VAC DIN Rail
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2905813 | 29058 Series |
|---|---|---|
| Contact Rating @ Voltage | 250 VAC, 5 A | 5 - 250 VAC |
| Delay Time [Max] | 1 Year | 1 Year |
| Delay Time [Min] | 0.05 Sec | 0.05 Sec |
| Function | Programmable (Multi-Function) | Programmable (Multi-Function) |
| Mounting Type | DIN Rail | DIN Rail |
| Relay Type | Mechanical Relay | Mechanical Relay |
| Termination Style | Screw Terminal | Spring Terminal, Screw Terminal |
| Timing Adjustment Method | Screwdriver Slot | Screwdriver Slot |
| Timing Initiate Method | Input Voltage | Input Voltage |
| Voltage - Supply [Max] | 240 VAC | 240 VAC |
| Voltage - Supply [Min] | 24 VAC | 24 VAC |
TIME DELAY RELAY PUSH-IN CONNECTION FLOATING SPDT
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Contact Rating @ Voltage | Function | Relay Type | Mounting Type | Timing Initiate Method | Termination Style | Timing Adjustment Method | Delay Time [Max] | Delay Time [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2905814 | 24 VAC | 240 VAC | 5 A, 250 VAC | Programmable (Multi-Function) | Mechanical Relay | DIN Rail | Input Voltage | Spring Terminal | Screwdriver Slot | 1 Year | 0.05 Sec |
Phoenix Contact 2905813 | 24 VAC | 240 VAC | 5 A, 250 VAC | Programmable (Multi-Function) | Mechanical Relay | DIN Rail | Input Voltage | Screw Terminal | Screwdriver Slot | 1 Year | 0.05 Sec |
