1624344
ActivePhoenix Contact

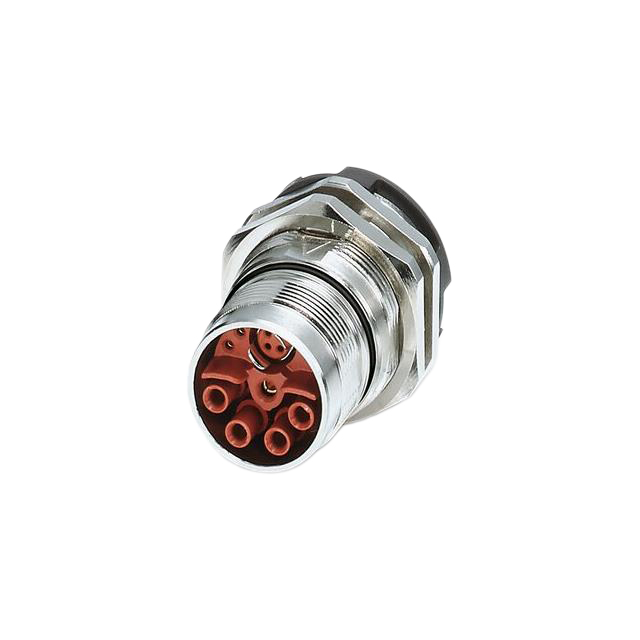

DEVICE CONN REAR MNT SKT 13POS
1624344
ActivePhoenix Contact
DEVICE CONN REAR MNT SKT 13POS
Description
General part information
1624344
13 (4 + 4 Data + 4 Power + PE) Position Circular Connector Receptacle Housing Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1624344 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 1 mm |
| Contact Size (Data) | 0.8 mm |
| Contact Size (Power) | 2 mm |
| Contact Type | Crimp |
| Fastening Type | Push-Twist |
| Housing Color | Silver |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 13 |
| Operating Temperature (Max) | 115 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Position Types | PE, Power, Data |
| Shell Material | Copper Zinc |
| Shell Size - Insert | M23-13 |
| Shielding | Shielded |
| Type | For Female Sockets |
