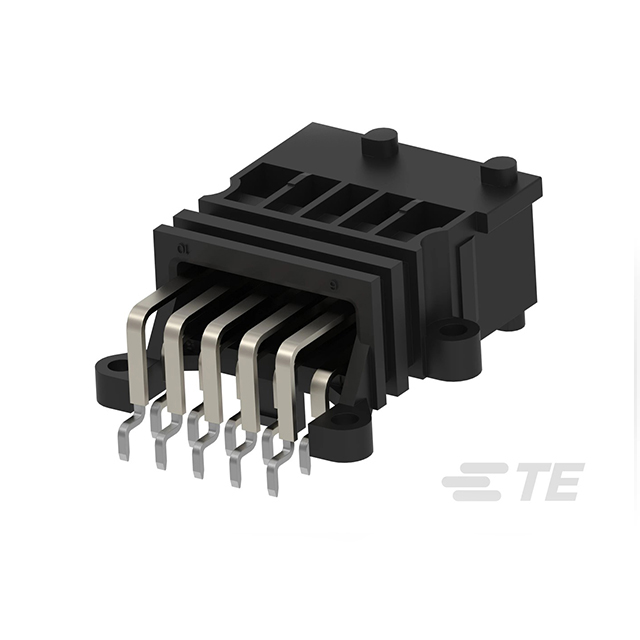

CONN HEADER R/A 10POS 5MM
Deep-Dive with AI
Search across all available documentation for this part.
1-967601-1
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 10POS 5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-967601-1 |
|---|---|
| Applications | Automotive, General Purpose |
| Connector Type | Plug |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Fastening Type | Lever Lock |
| Features | Mounting Flange |
| Insulation Color | Black |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 5 mm |
| Pitch - Mating | 0.197 " |
| Row Spacing - Mating | 0.236 in |
| Row Spacing - Mating | 6 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.89 | |
| 65 | $ 11.76 | |||
| 130 | $ 10.90 | |||
| 1040 | $ 9.30 | |||
967601 Series
CONN HEADER R/A 10POS 5MM
| Part | Row Spacing - Mating | Row Spacing - Mating | Pitch - Mating | Pitch - Mating | Number of Positions | Mounting Type | Features | Contact Type | Contact Material | Style | Applications | Shrouding | Insulation Color | Number of Positions Loaded | Contact Shape | Number of Rows | Connector Type | Fastening Type | Termination | Contact Finish - Post | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-967601-1 | 0.236 in | 6 mm | 5 mm | 0.197 " | 10 | Through Hole, Right Angle | Mounting Flange | Tab | Copper Alloy | Board to Board, Cable | Automotive, General Purpose | Shrouded - 4 Wall | Black | All | Rectangular | 2 | Plug | Lever Lock | Solder | Tin | Polybutylene Terephthalate (PBT), Glass Filled |
Description
General part information
967601 Series
Connector Header Through Hole, Right Angle 10 position 0.197" (5.00mm)
