4-1825136-4
ActiveTE Connectivity AMP Connectors

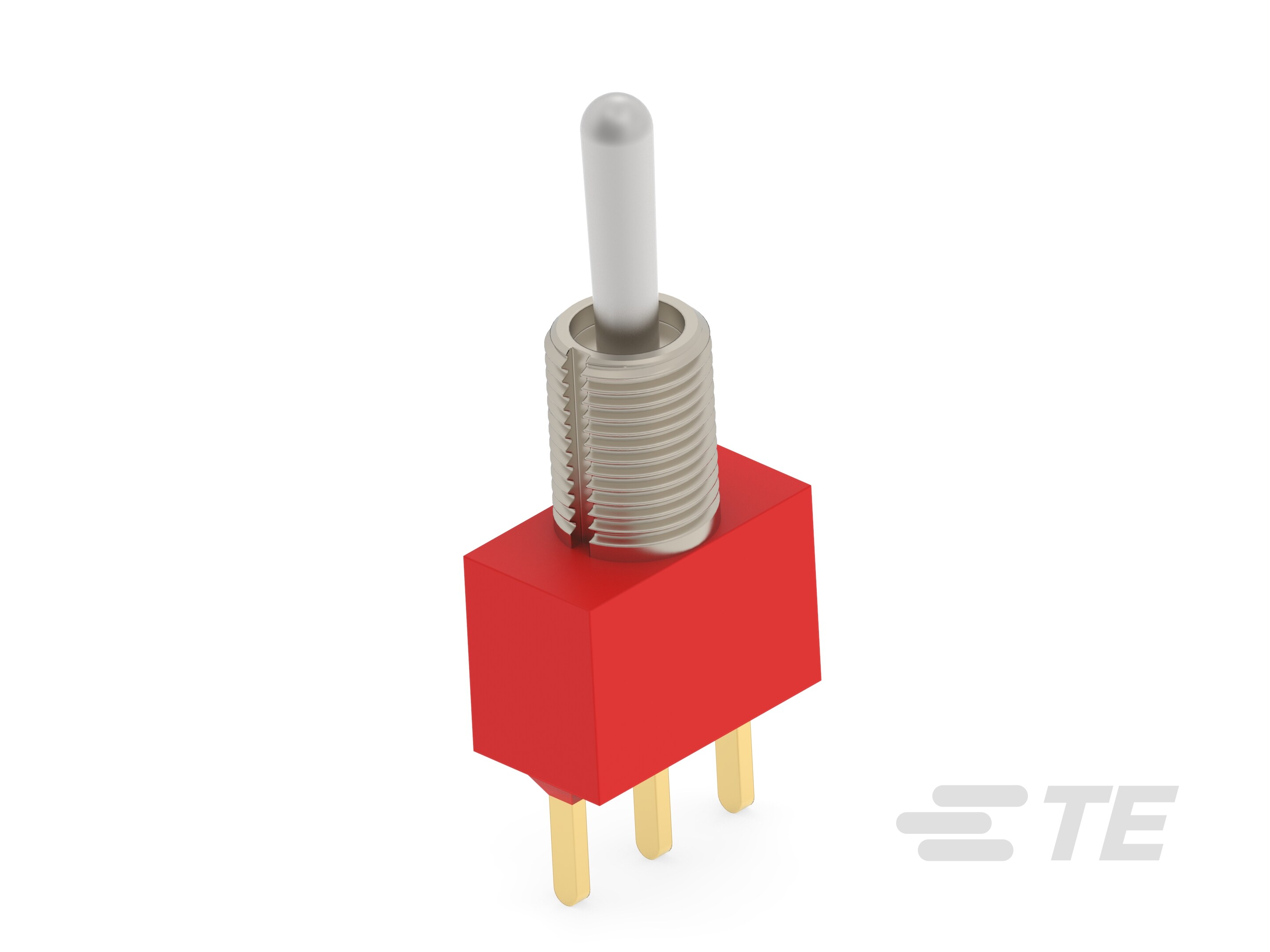

SWITCH TOGGLE SPDT 0.4VA 20V
4-1825136-4
ActiveTE Connectivity AMP Connectors
SWITCH TOGGLE SPDT 0.4VA 20V
Description
General part information
ALCOSWITCH Gemini A Series Series
.4 A Toggle Switch, Single Pole - Double Throw Configuration (Pole-Throw), On On, 2 Position, 20 VDC, 20 VAC, Vertical, ALCOSWITCH Gemini A Series
Technical Specifications
Parameters and characteristics for this part
| Specification | 4-1825136-4 |
|---|---|
| Actuator Length | 10.41 mm |
| Actuator Material | Nickel Plated, Brass |
| Actuator Type | Standard Round |
| Bushing Thread | 1/4-40 |
| Circuit | SPDT |
| Current Rating | 0.4 VA |
| Electrical Life (Cycles) | 6000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Panel Cutout Diameter | 0.25 " |
| Panel Cutout Shape | Circular |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
