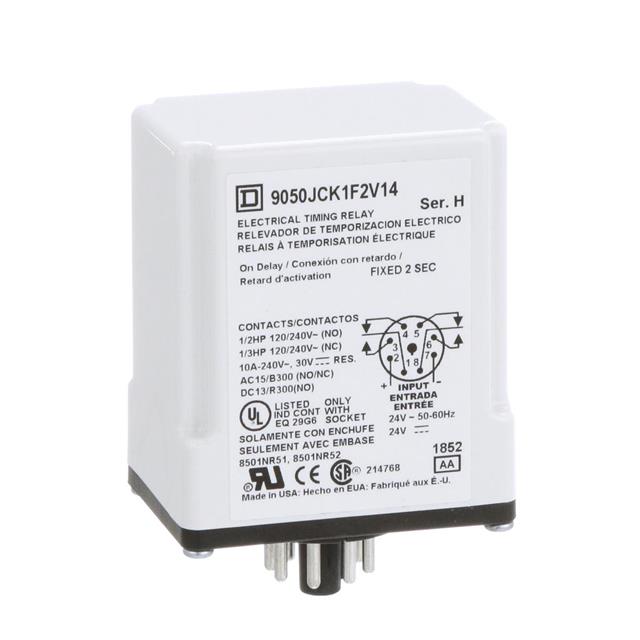

Specification	9050JCK1F2V14

Circuit	DPDT (2 Form C)
Contact Rating (Current)	10 A
Delay Time (Fixed)	2 Sec
Delay Time Mode	Fixed
Function	On-Delay
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In
Timing Adjustment Method	Fixed
Timing Initiate Method	Input Voltage
Voltage - Supply	24 VDC
Voltage - Supply (Option 1)	24 VAC
Voltage - Supply (Option 2)	24 DC

9050J Series

Part	Timing Adjustment Method	Delay Time (Maximum)	Delay Time (Minimum)	Voltage - Supply	Relay Type	Circuit	Contact Rating (Current)	Mounting Type	Timing Initiate Method	Function	Termination Style	Voltage - Supply (Option 1)	Voltage - Supply (Option 2)
SCHNEIDER ELECTRIC 9050JCK24V20	Hand Dial	2 Min	1.2 Sec	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage	Off-Delay	Plug In
SCHNEIDER ELECTRIC 9050JCK26V14	Hand Dial	10 Min	6 Sec	24 VDC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage	Off-Delay	Plug In	24 VAC	24 DC
SCHNEIDER ELECTRIC 9050JCK33V20	Hand Dial	60 Sec	0.6 Sec	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage	Interval	Plug In
SCHNEIDER ELECTRIC 9050JCK14V14	Hand Dial	2 Min	1.2 Sec	24 VDC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage	On-Delay	Plug In	24 VAC	24 DC
SCHNEIDER ELECTRIC 9050JCK26PTV20	Hand Dial	10 Min	6 Sec	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage Trigger Signal	Off-Delay	Plug In
SCHNEIDER ELECTRIC 9050JCK16V20	Hand Dial	10 Min	6 Sec	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage	On-Delay	Plug In
SCHNEIDER ELECTRIC 9050JCK53V20	Hand Dial	60 Sec	0.6 Sec	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage	Repeat Cycle	Plug In
SCHNEIDER ELECTRIC 9050JCK23V20	Hand Dial	60 Sec	0.6 Sec	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage	Off-Delay	Plug In
SCHNEIDER ELECTRIC 9050JCK55V20	Hand Dial	3 Min	1.8 Sec	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage	Repeat Cycle	Plug In
SCHNEIDER ELECTRIC 9050JCK11V14	Hand Dial	10 Sec	0.1 Sec	24 VDC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage	On-Delay	Plug In	24 VAC	24 DC
